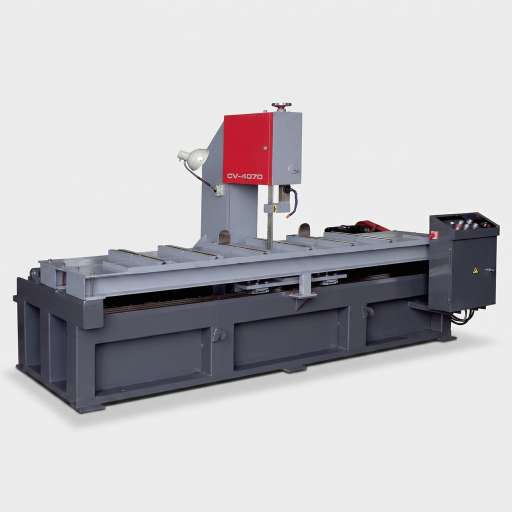

MFG CV-4070 Heavy-Duty Vertical Contour Metal Bandsaw

Versatile 400mm Throat Depth with Stepless Speed & Integrated Blade Welder

Product Overview
The MFG CV-4070 is a professional-grade vertical contour bandsaw engineered for maximum versatility and precision in metal fabrication, tool rooms, and mold shops. Featuring a generous 400mm (15.7") throat depth and a high-performance stepless variable speed system (25-115 m/min), it effortlessly handles everything from intricate contouring in thin sheets to straight cuts in solid blocks. Built with a robust 1.5kW motor and a high-stability 320kg frame, the CV-4070 is the ultimate solution for processing steel, aluminum, plastics, and various alloys with uncompromising accuracy and ease of use.

Key Features & Benefits

• Massive 400mm Throat Depth: The expansive 400mm throat depth provides an exceptionally large workspace, allowing operators to easily maneuver and cut oversized workpieces, large plates, and complex irregular shapes.
• Precision Stepless Speed Control: Equipped with a variable frequency drive that allows for stepless speed adjustment between 25 and 115 m/min. This enables the operator to dial in the perfect blade speed for any material hardness, maximizing blade life and improving surface finish.
• Integrated Blade Welding & Grinding Station: Features a built-in electric welder, shearer, and grinder. This allows users to weld their own blades from economical bulk rolls or quickly repair broken blades on-site, significantly reducing downtime and tooling costs.
• Dual-Direction Tilting Worktable: The heavy-duty 600x500mm cast iron worktable can tilt 15° both Left and Right. This flexibility is essential for performing precise bevel cuts, miter joints, and complex angled contours.
• Reliable 1.5kW (2HP) Power: Driven by a robust 1.5kW industrial motor, providing consistent torque and high cutting efficiency even when processing tough tool steels or thick-walled profiles.
• Clean & Clear Cutting Path: Comes standard with an air blower and optional cooling system to keep the cutting line free of chips and prevent thermal distortion, ensuring the operator always has a clear view of the precision layout lines.
