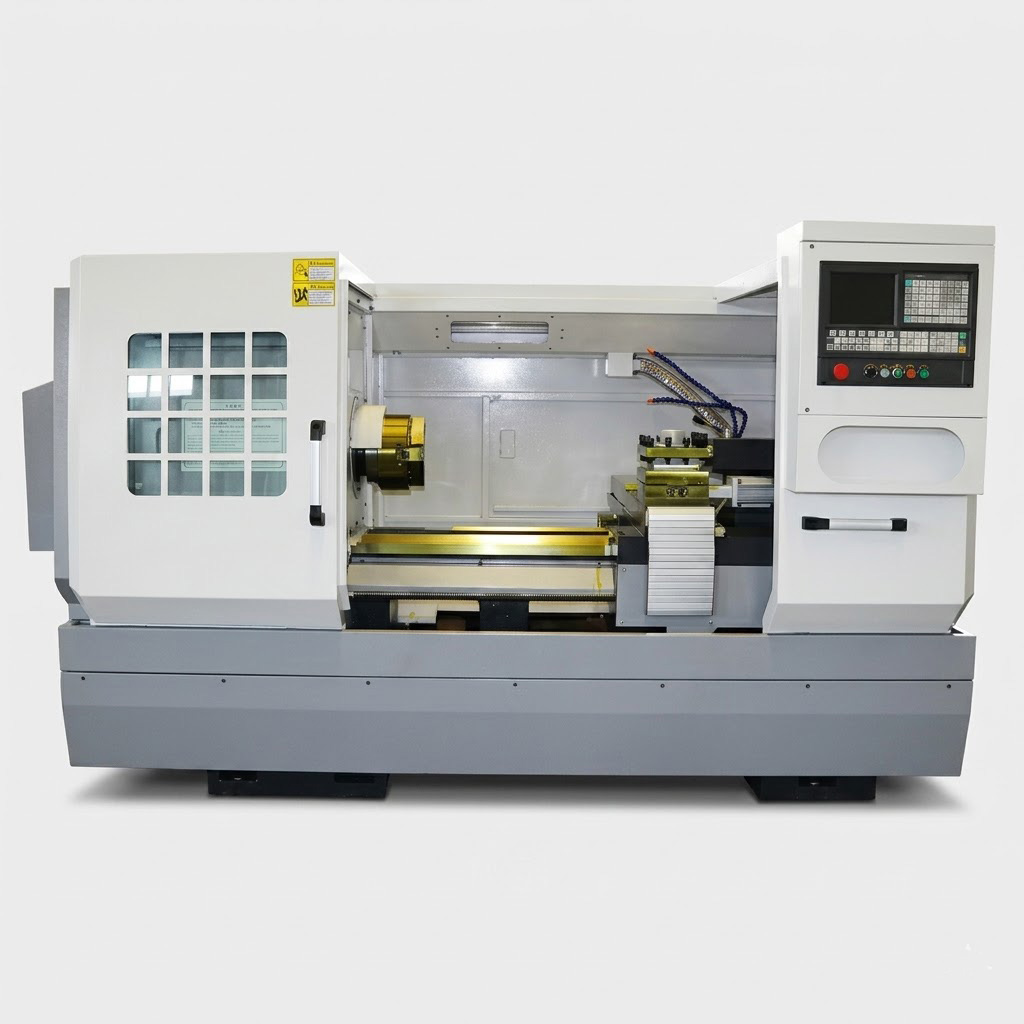

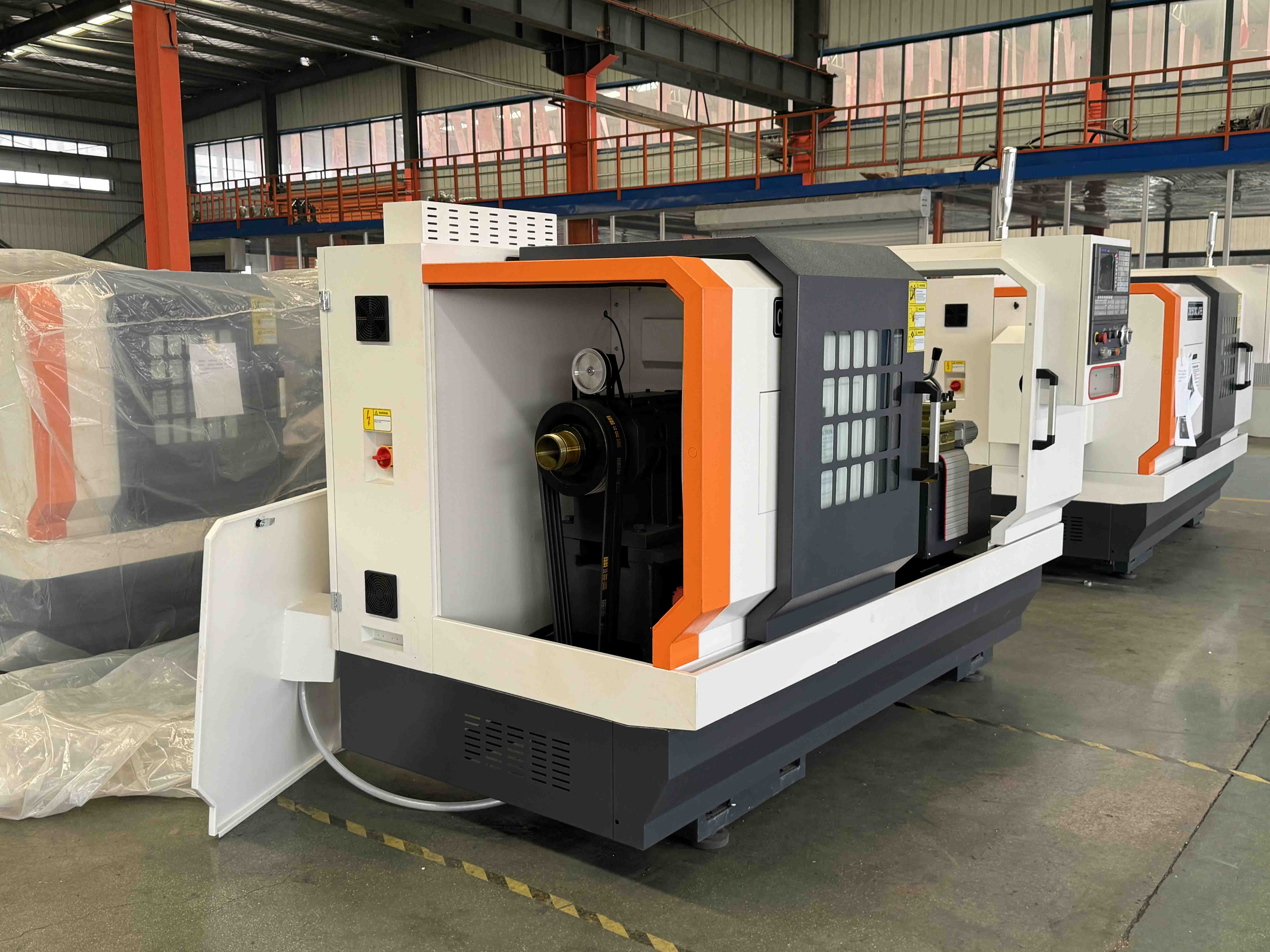

MFG Machinery CK6160 Heavy-Duty Flat Bed CNC Lathe

600mm Swing, Up to 105mm Bore & 11kW Power for Precision Shaft and Disc Machining

Product Overview
The MFG Machinery CK6160 is an export-proven, heavy-duty flat bed CNC lathe engineered to deliver uncompromising rigidity, massive spindle torque, and lasting accuracy. Boasting an expansive 600mm swing over the bed and an ultra-wide 400mm guideway span, this robust machine (weighing up to 3.2 tons) is purpose-built to tackle complex, large-scale disc and shaft components.

Governed by the highly reliable GSK 980TC3 CNC controller, it effortlessly automates the processing of straight lines, arcs, and multi-start metric/inch threads. Equipped with a dynamically balanced high-torque spindle and an intelligent forced lubrication system, the CK6160 guarantees exceptional precision retention and continuous stability for your most demanding high-volume production lines.

Key Features & Engineering Advantages

• Ultra-Rigid 400mm Wide Guideways: The machine tool bed and saddle guideways are manufactured from specially formulated hard materials. Undergoing high-frequency induction quenching, they achieve super-hard, wear-resistant surfaces that drastically reduce vibration and ensure long-term machining accuracy.
• Dynamically Balanced Precision Spindle: The optimized headstock houses a premium high-precision bearing group. Through rigorous precision assembly and dynamic balance testing, the spindle delivers massive torque with exceptionally low noise, providing the strong rigidity required for heavy material removal.
• K11 Heavy-Duty Chuck System: Comes standard with the K11 series 3-jaw self-centering manual chuck featuring a robust short cylindrical connection. Designed with integral or separate (A/C/D type) jaws, it allows operators to easily adjust for positive or reverse jaw clamping to secure diverse workpiece profiles.
• Thermally Stable Transmission: Engineered for high efficiency and reversibility with minimal temperature rise. This advanced transmission ensures low energy consumption, high synchronization, and long service life, giving operators simple maintenance and ultimate control during high-speed cuts.
• Advanced GSK CNC & Precision Ball Screws: Powered by the industry-leading GSK 980TC3 numerical control system and paired with domestic premium ball screws and high-precision screw bearings to guarantee flawless multi-axis positioning and repeatability.
• Intelligent Forced Auto-Lubrication: Every critical moving part is protected. A forced automatic lubricating device delivers metered, fixed-point quantitative oil to the ball screws and guideways. An integrated alarm system automatically warns the operator of any abnormal states or low oil levels, ensuring fail-safe operation.
• Versatile Heavy-Duty Tailstock: Designed to support long and heavy shaft components, the MT5 taper hydraulic tailstock can be configured for manual or fully hydraulic adjustment, locking, and quill advancing, seamlessly integrating into your workflow.
