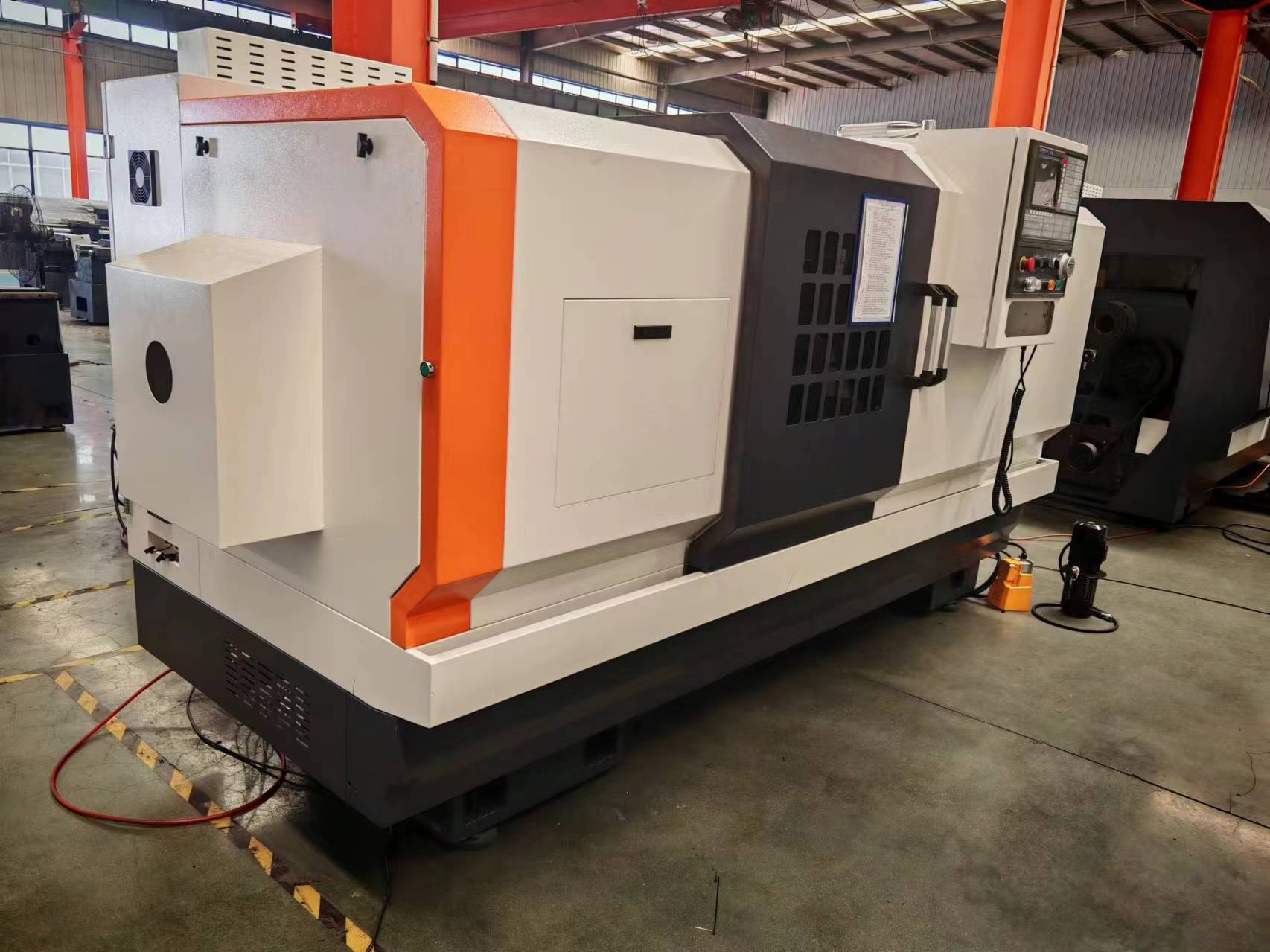

MFG Machinery CK6152E Flat Bed CNC Lathe

520mm Extended Swing, 82mm Bore & Hall-Effect Turret for High-Precision Turning

Product Overview

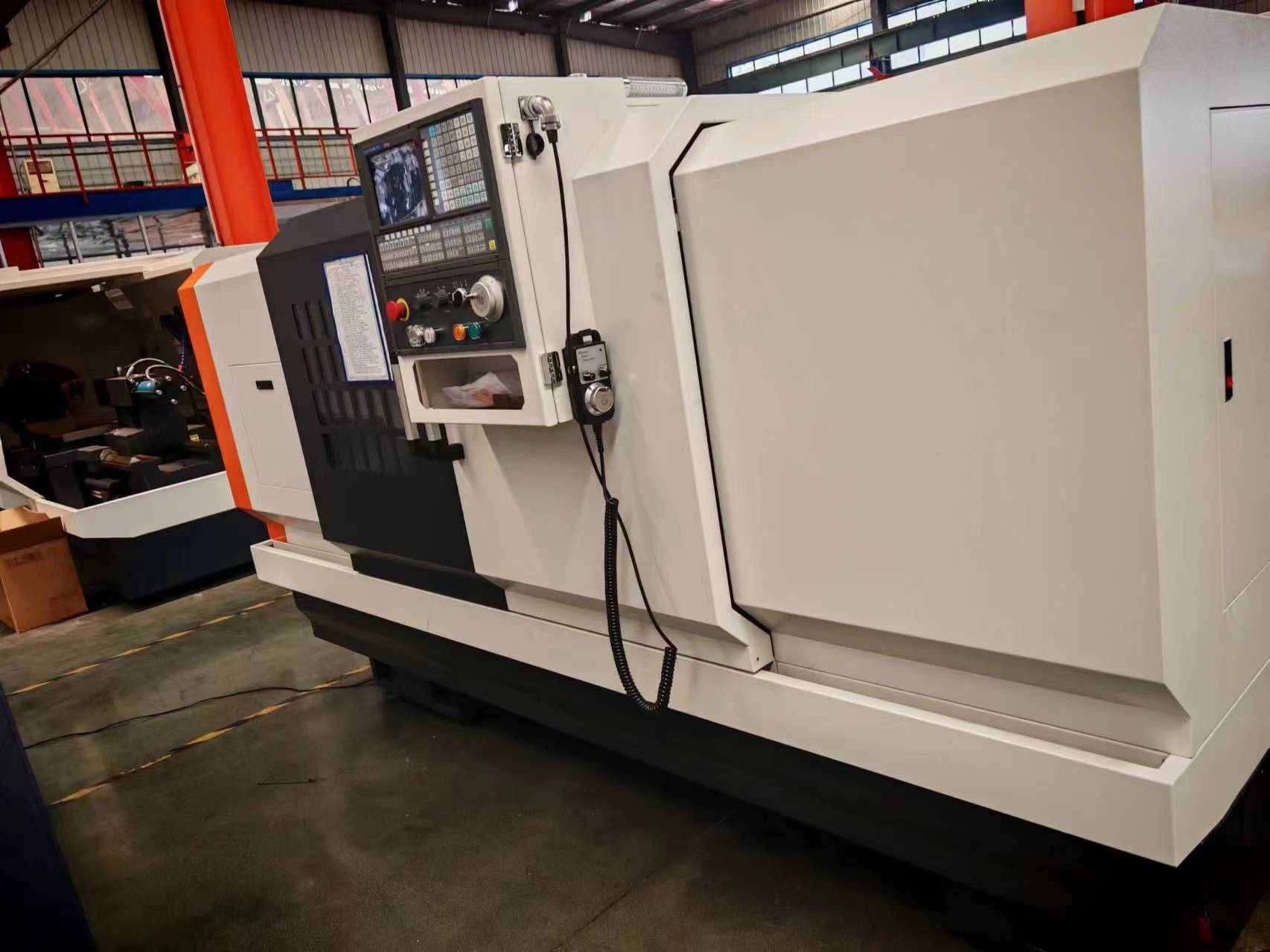

The MFG Machinery CK6152E is a mature, export-proven flat bed CNC lathe designed to deliver massive cutting rigidity and exceptional accuracy retention within an ergonomic industrial design. Engineered to outperform standard models, it boasts an extended 520mm swing over the bed and an 82mm large spindle bore, making it the ultimate solution for heavy-duty disc and shaft turning. Governed by the highly reliable GSK 980TC3 CNC system, it effortlessly automates complex geometries, including arcs, straight lines, and multi-start metric/inch threading. Driven by a 7.5kW motor and featuring a dynamically balanced spindle alongside a rapid Hall-effect tool turret, the CK6152E ensures stable, low-noise, and high-efficiency batch production for modern machine shops.

Key Features & Engineering Advantages

• Dynamically Balanced Precision Spindle: The optimized headstock houses a high-precision spindle bearing group. Through rigorous precision assembly and dynamic balance testing, the spindle guarantees exceptionally high rotational accuracy, minimal noise, and the rock-solid rigidity needed for heavy material removal (100–1600 r/min).

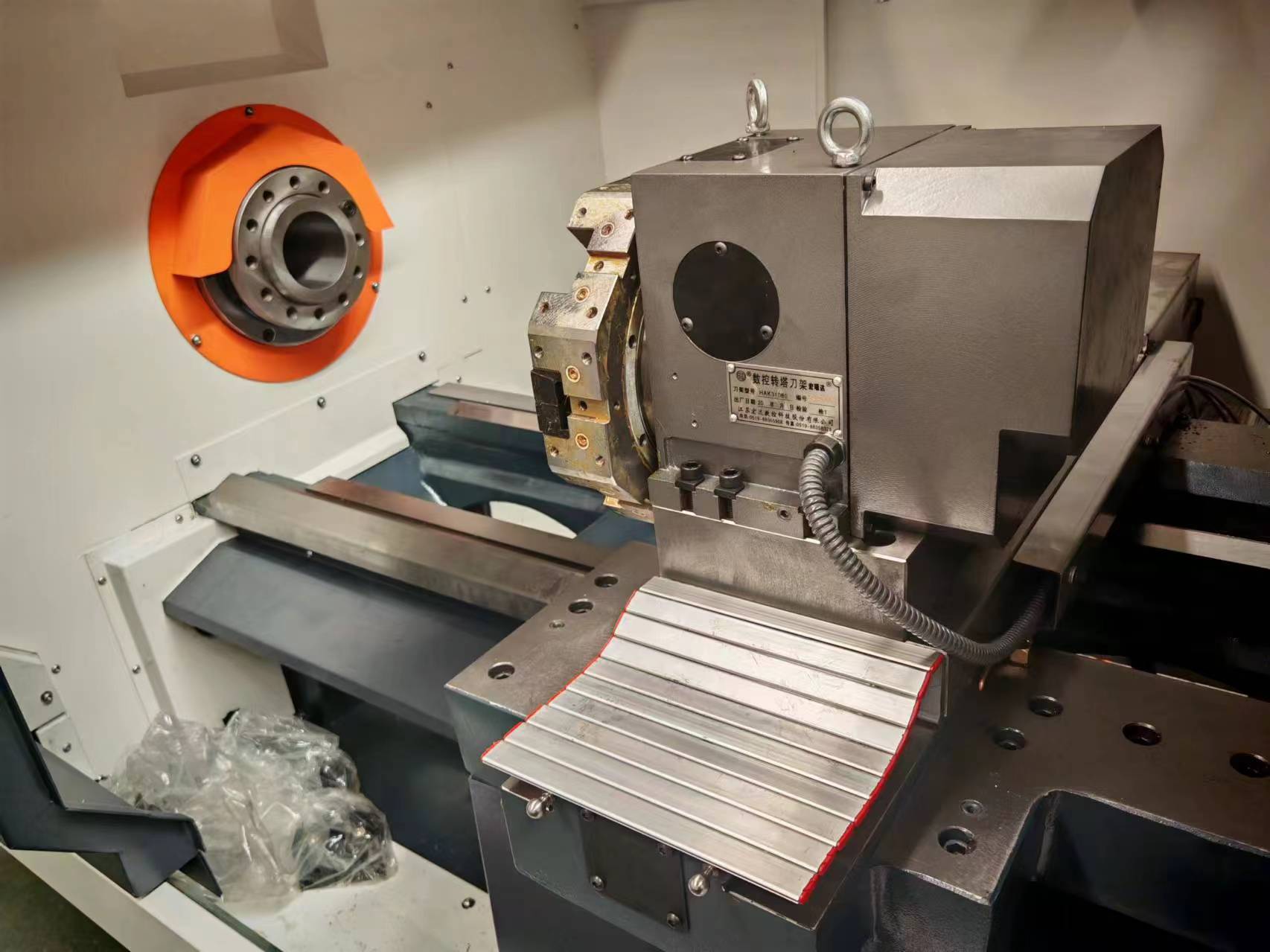

• Advanced Hall-Effect Electric Turret: The 4-station tool post operates on a heavy-duty worm-gear transmission with precise gear plate meshing and secure screw clamping. Utilizing solid-state Hall-effect sensors for position transmission, it delivers lightning-fast indexing, massive tangential torque, and a significantly extended service life.
• Ultra-Rigid Quenched Guideways & Wipers: Both the machine bed and sliding saddle guideways are manufactured from specialized hard materials and subjected to high-frequency induction quenching. To protect this super-hard, wear-resistant surface, integrated guideway wipers (scraping devices) actively prevent corrosive coolants and iron shavings from damaging the rails.

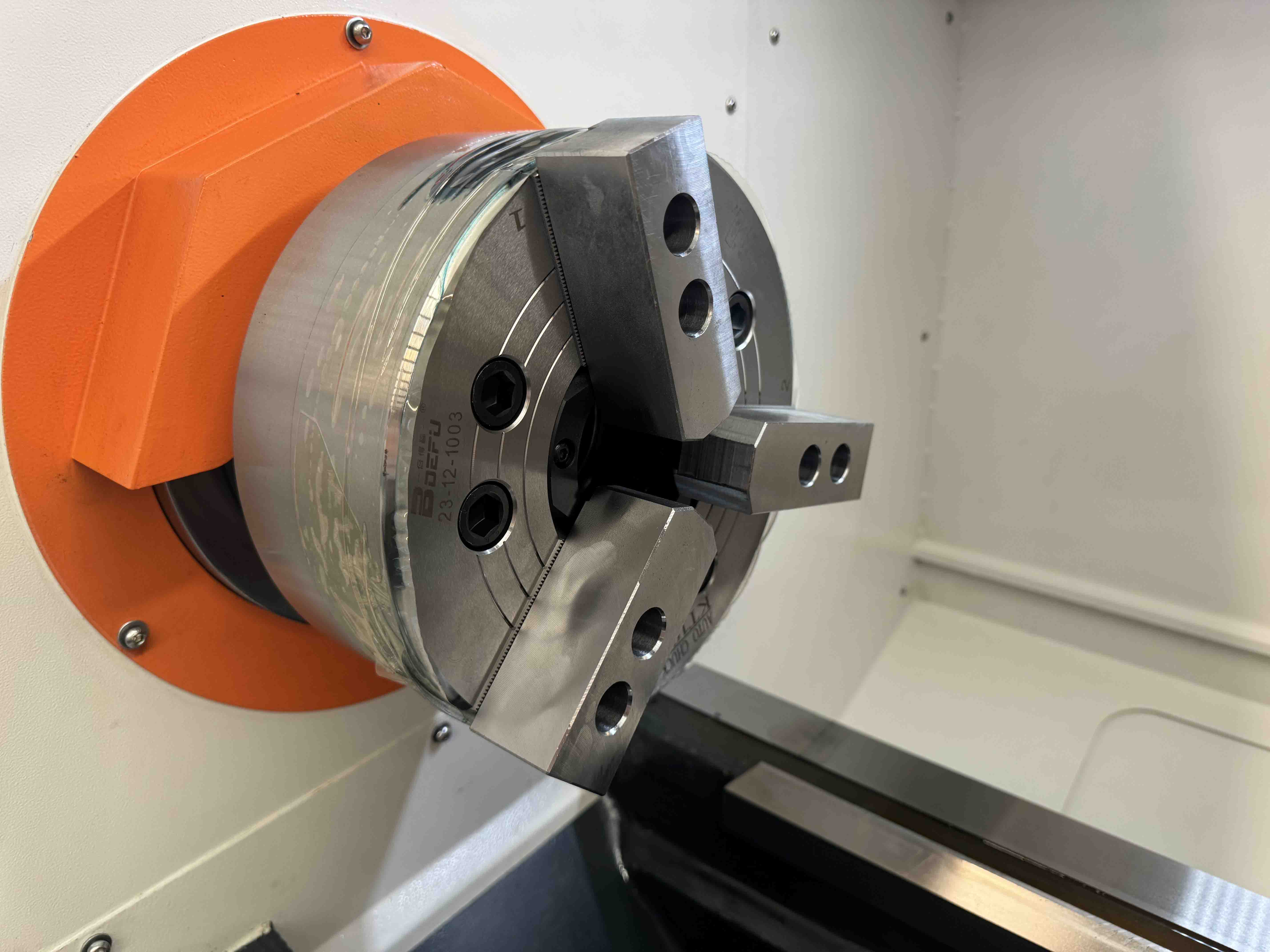

• Heavy-Duty K11 250mm Chuck System: Comes standard with a robust K11 series 3-jaw self-centering chuck featuring a short cylindrical connection. Built for versatility, the integral or separated (A/C/D type) jaws can be easily adjusted for positive and reverse clamping to secure diverse workpiece shapes safely.
• Thermally Stable Transmission: Engineered for high efficiency and reversibility with minimal temperature rise. This advanced transmission ensures low energy consumption, high synchronization, and lasting structural precision without thermal expansion errors during prolonged machining cycles.
• Intelligent Auto-Lubrication System: A forced automatic lubricating device delivers metered, fixed-point quantitative oil directly to the domestic precision ball screws and guideways. An integrated alarm system continuously monitors fluid levels and instantly generates a warning signal if an anomaly occurs, ensuring fail-safe operations.
• Versatile Tailstock Configurations: The MT5 taper tailstock provides robust support for long workpieces. Operators can configure it for manual adjustment and locking, or opt for a fully hydraulic system for automated quill advancing (jacking).
