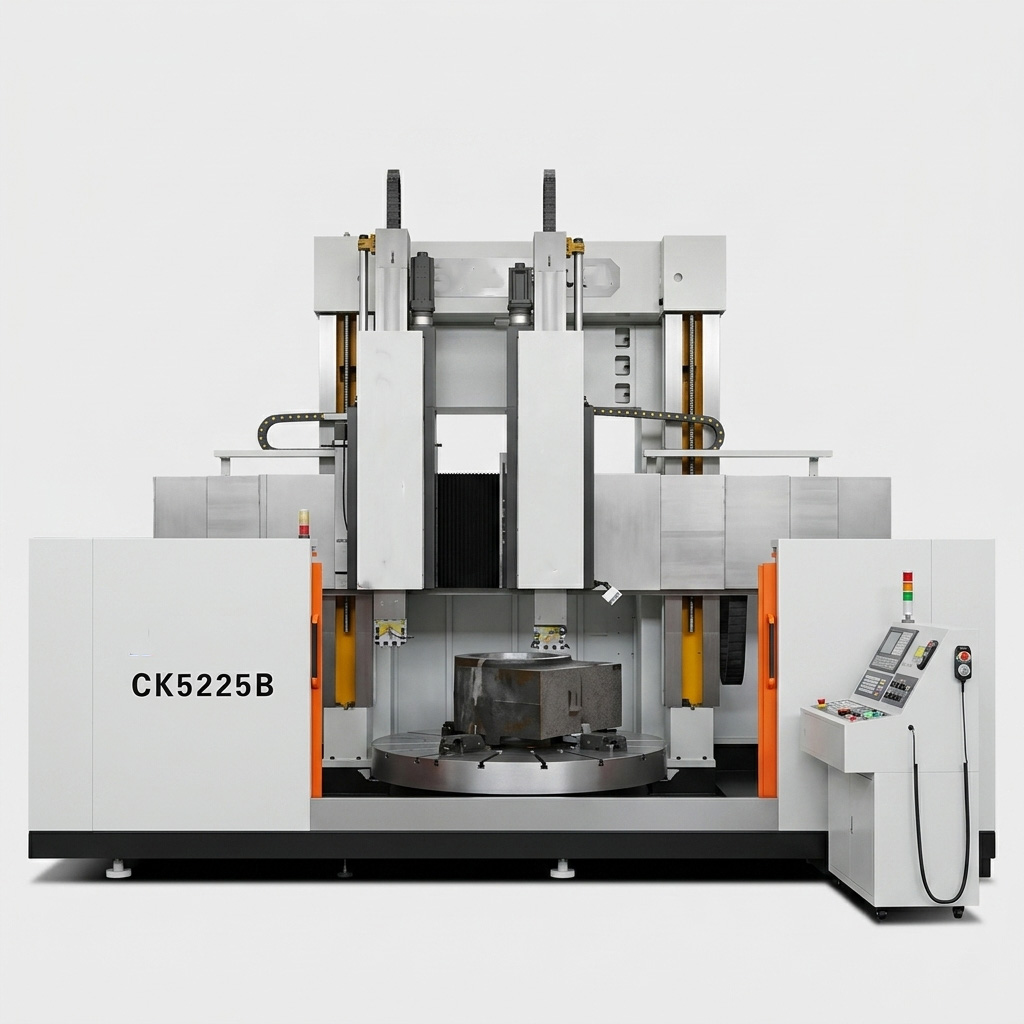

MFG CK5225 Heavy-Duty Double Column CNC Vertical Turning Lathe (VTL)

2500mm Swing, 55kW High-Power Drive & Dual Square Rams for Extra-Large Components

Product Overview
The MFG CK5225 is a colossal, high-precision double-column CNC Vertical Turning Lathe (VTL) designed for the most demanding heavy-industry machining challenges.

Engineered with a massive 2.5-meter machining capacity, this machine features a robust dual-column architecture that provides unparalleled structural symmetry and vibration damping.

Powered by a powerhouse 55kW AC main motor with stepless speed regulation, the CK5125 is built to handle ultra-heavy workpieces with extreme material removal rates.

Featuring a dual-turret configuration with heavy-duty square rams (up to 220x220mm), it allows for complex simultaneous machining or multi-process setups, making it the definitive solution for the energy, mining, and heavy equipment manufacturing sectors.

Key Features & Advanced Engineering

• Extreme Double-Column Rigidity: The CK5225 utilizes a massive double-column frame cast from high-strength iron. This symmetrical design offers significantly higher static and dynamic rigidity compared to single-column models, ensuring absolute precision when processing workpieces up to 2500mm in diameter.
• Dual-Channel & Dual-Turret Productivity: Equipped with a sophisticated dual-channel control architecture. The Right Turret (GSK 980TDI) and Left Turret (DVT) can be controlled independently or in synchronization, allowing for simultaneous roughing and finishing or the execution of different processes on a single setup to slash cycle times.
• Massive 55kW High-Torque Drive: The worktable is driven by a powerhouse 55kW AC motor, delivering crushing torque for heavy raw-casting roughing. The stepless speed regulation ensures smooth, vibration-free rotation at all speeds, providing a superior surface finish on massive components.
• Heavy-Duty Dual Square Rams: Designed for extreme material removal. The Right Ram (220x220 mm) and Left Ram (200x200 mm) feature reinforced square cross-sections for maximum bending stiffness. This setup is the ultimate structural choice for aggressive interrupted cutting and high-precision deep boring.
• Universal CNC Control Options: Comes standard with a powerful GSK and DVT dual-system configuration. For global shops requiring specific controller ecosystems, premium Siemens 828D and FANUC CNC systems are available as optional upgrades.
• Industrial Protection & Management: Engineered for heavy chip loads and high-volume production. Features include stainless steel crossbeam covers and optional semi-enclosed guarding. Integrated automated chip removal and high-capacity cooling water systems are available to maintain a clean shop environment and maximize tool life.
