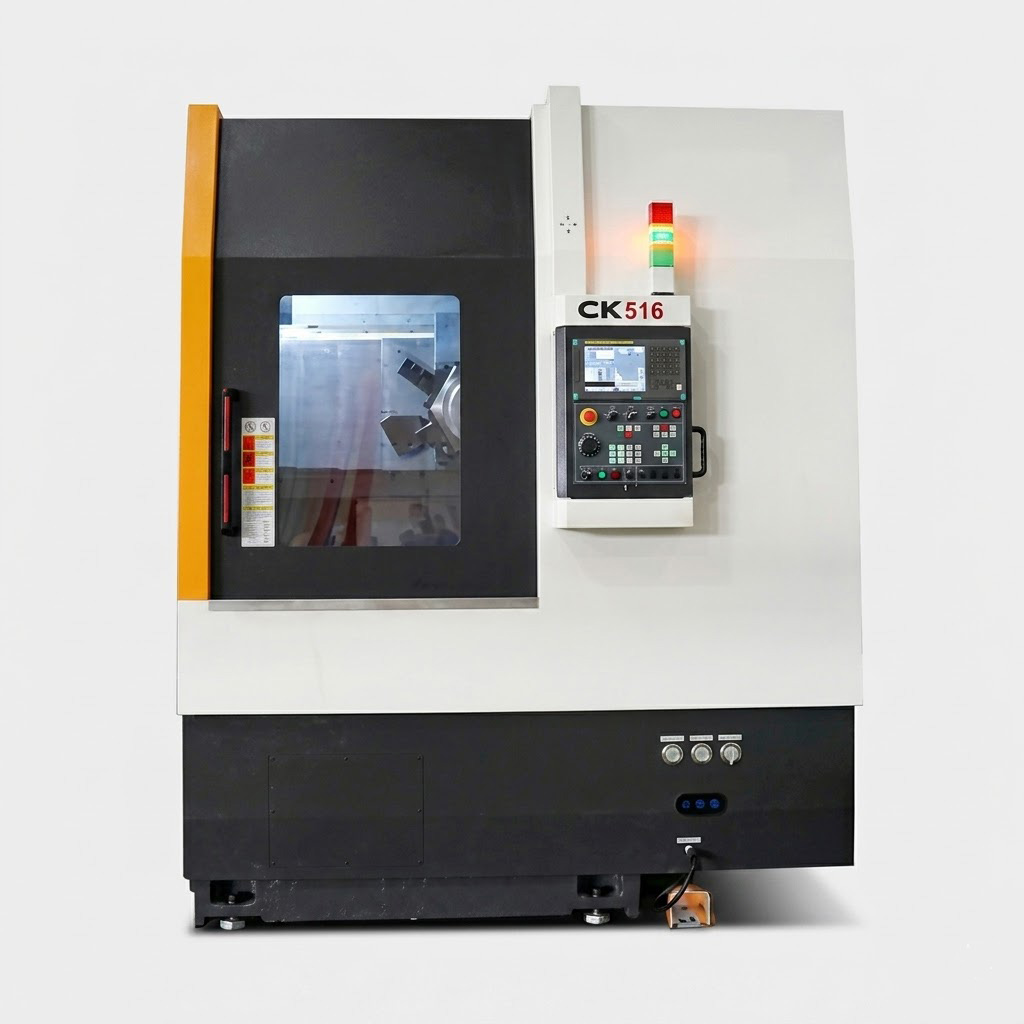

MFG Machinery CK516 CNC Vertical Turning Lathe (VTL)

Compact Design, ZF 2-Speed Gearbox & Heavy-Duty Linear Guides for Precision Disc Machining

Product Overview
The MFG Machinery CK516A is a high-efficiency, space-saving CNC Vertical Turning Lathe (VTL) explicitly engineered for the precision machining of medium-to-large disc, cover, and flange components.

Built on a highly rigid cast-iron foundation, it features a vertical architecture that makes workpiece clamping effortless while occupying a minimal footprint on your shop floor. Equipped with the industry-leading FANUC 0i series CNC control, premium super heavy-duty linear rolling guides, and a high-power AC spindle driven by a German ZF 2-speed gearbox, the CK516A delivers the perfect balance of massive low-speed roughing torque and high-speed finishing precision.

Key Features & Advanced Engineering

• High-Torque Drive with ZF Gearbox: Powered by a robust AC spindle motor coupled with a premium ZF 2-speed gearbox. This advanced transmission configuration ensures maximum cutting torque at low RPMs for aggressive material removal, while seamlessly transitioning to high speeds for flawless surface finishing.
• Thermal-Optimized Cartridge Spindle: Features a high-precision, high-rigidity cartridge-type spindle. The spindle sleeve utilizes an innovative symmetrical suspended design, which effectively isolates heat and completely eliminates the impact of thermal distortion on machining accuracy. It is sealed with imported high-grade grease for maintenance-free, fully enclosed operation.
• Super Heavy-Duty Linear Guideways: The saddle and column are equipped with premium super heavy-duty linear rolling guides. These provide exceptionally low friction, zero stick-slip, and lightning-fast dynamic response, ensuring long-term precision retention during high-volume production.
• Compact & Ergonomic Architecture: The high-strength cast-iron base and column provide outstanding shock absorption and stability. Its vertical structure not only saves valuable floor space but also allows gravity to assist in the seating and clamping of heavy, awkward workpieces.
• Rapid 6-Station Electric Turret: Comes standard with a highly reliable YANTAI 6-station vertical electric turret. It offers rapid tool indexing, precise positioning, and immense locking rigidity for uninterrupted cutting cycles.
• Eco-Friendly Coolant Management: Engineered with a built-in oil-water separation structure (oil skimmer) that continuously removes tramp oil, keeping the coolant clean, odor-free, and environmentally friendly for extended periods. The separate cooling water tank design makes routine cleaning fast and effortless.
