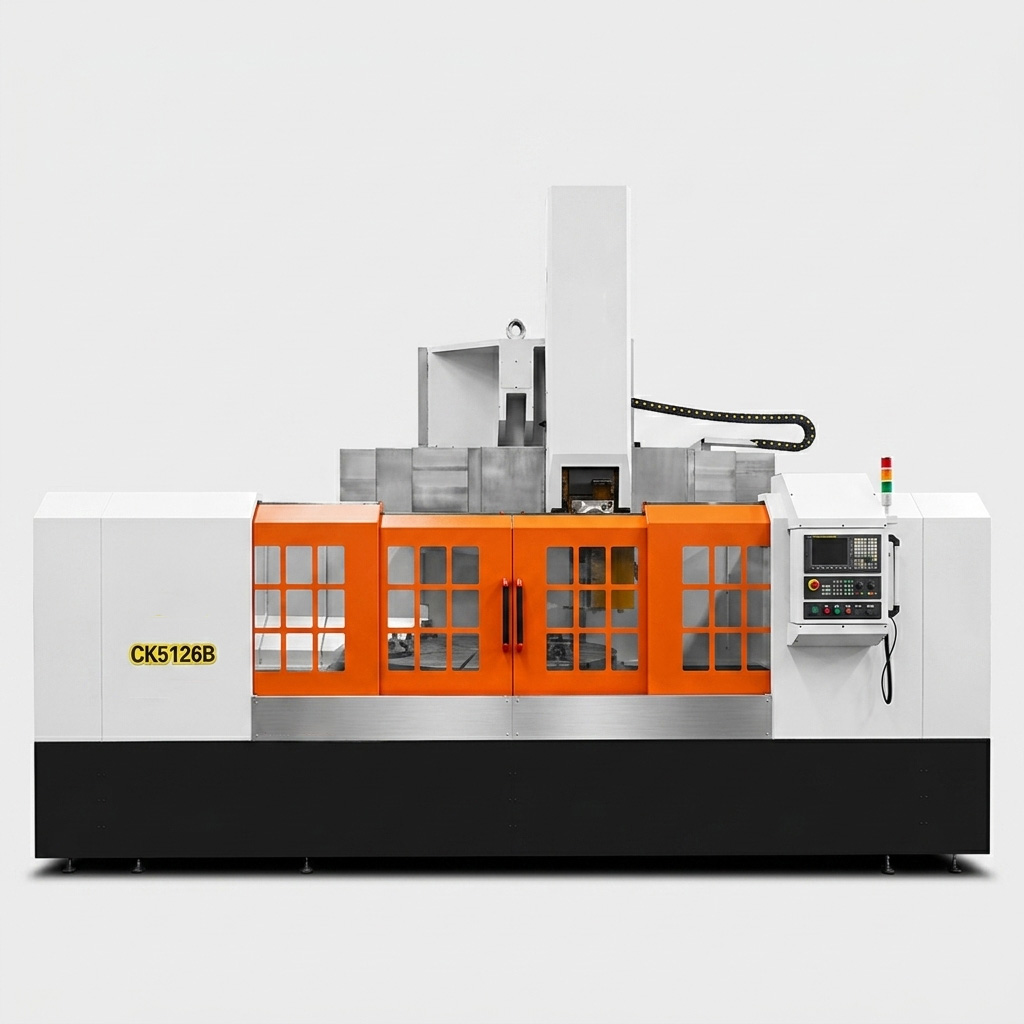

MFG CK5126 Heavy-Duty CNC Vertical Turning Lathe (VTL)

2600mm Swing, 37kW High-Torque Servo Drive & Square Ram for Large-Scale Heavy Machining

Product Overview
The MFG CK5126 is a colossal, single-column CNC Vertical Turning Lathe (VTL) engineered to dominate 2.6-meter class heavy-duty manufacturing.

Built for ultimate stability and massive material removal rates, it features a powerhouse 37kW AC servo main motor paired with a 4-gear mechanical gearbox, delivering incredible torque and stepless speed regulation.

Whether you are roughing massive raw castings or executing high-precision finishing on large-scale ferrous, non-ferrous, or non-metallic workpieces, the CK5126 ensures unwavering rigidity via its reinforced square ram architecture.

This machine is the definitive turnkey solution for industries requiring extreme reliability and processing efficiency, including wind power, aerospace, and heavy equipment sectors.

Key Features & Advanced Engineering

• Colossal 2.6-Meter Machining Capacity: Designed to handle massive workpieces, the CK5126 architecture provides a maximum turning diameter of up to 2600mm, allowing your shop to process the largest industrial flanges, disc sleeves, and oversized covers with ease.
• 37kW High-Torque Servo Drive: Powered by a robust 37kW AC servo motor and a 4-gear stepless transmission. This setup provides crushing torque at low RPMs for aggressive roughing and maintains exceptionally smooth, vibration-free rotation at high speeds for a mirror-like surface finish.
• Reinforced Square Ram Architecture: The vertical ram utilizes a high-rigidity square cross-section design. This geometry maximizes bending stiffness and provides superior vibration damping, which is essential for maintaining tight tolerances during deep-hole boring and heavy interrupted cuts.
• Multi-System CNC Versatility: Comes standard with the reliable GSK 980TDi CNC system (Guangshu). For seamless integration into international production lines, premium Siemens 828D and FANUC CNC systems are readily available as optional upgrades.
• Flexible Automated Tooling: The standard configuration features a rigid manual tool post, with the option to upgrade to a 4-station or 6-station vertical electric turret. This enables rapid automated tool changes, significantly reducing non-cutting idle time.
• Advanced Industrial Protection: Engineered for heavy chip loads, the machine features stainless steel crossbeam covers and optional semi-enclosed splash guarding. Integrated automated chip removal and high-pressure cooling water systems are available to maximize tool life and simplify maintenance.
