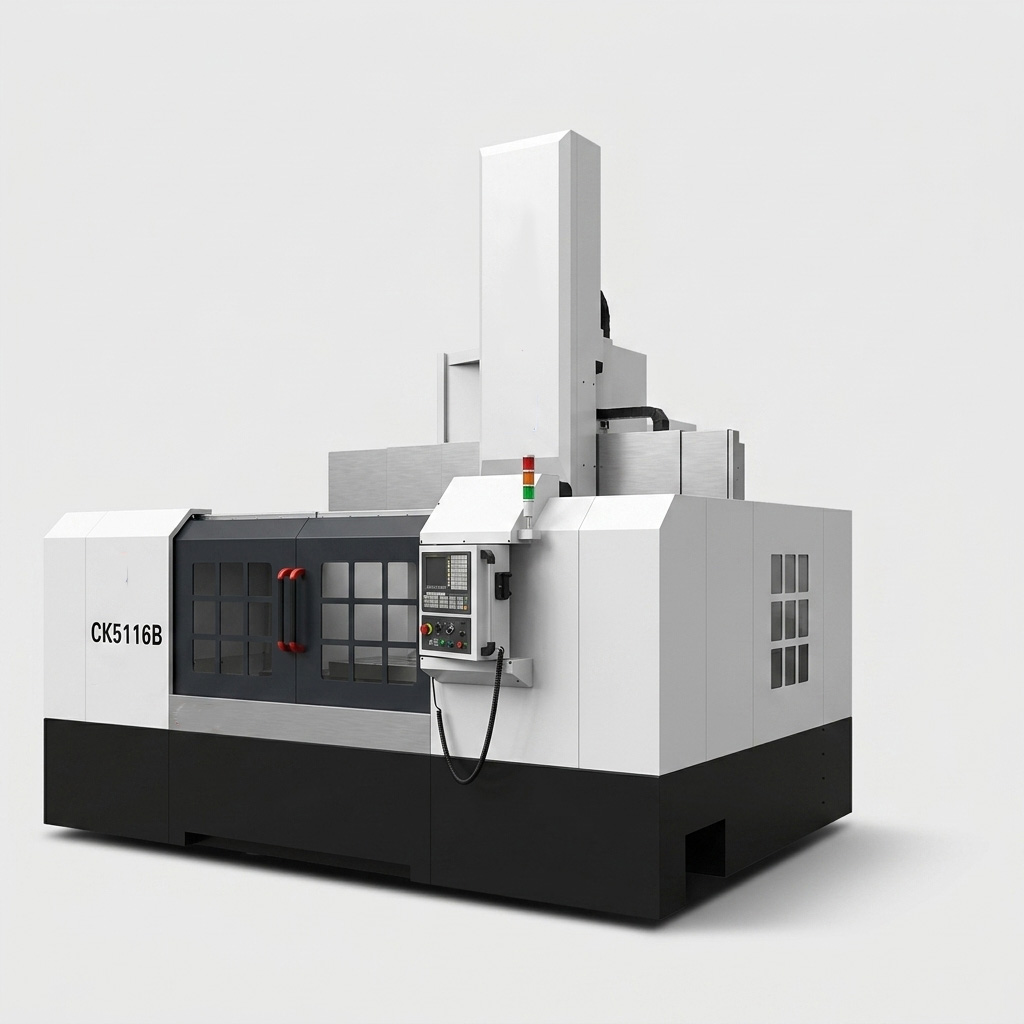

MFG Machinery CK5116 CNC Vertical Turning Lathe (VTL)

1600mm Swing, 30kW High-Torque Servo & Square Ram for Heavy-Duty Precision

Product Overview
The MFG Machinery CK5116 is a high-performance, heavy-duty single-column CNC Vertical Turning Lathe (VTL) engineered for the most demanding applications in aerospace, military, railway, and heavy valve manufacturing.

Designed to handle massive workpieces with uncompromising structural rigidity, this machine excels with high-speed steel, carbide, and other high-performance cutting tools. With its 30kW high-power AC servo motor, 4-speed stepless transmission, and robust square ram architecture, the CK5116 effortlessly executes aggressive roughing and precision finishing of internal/external cylindrical surfaces, conical profiles, planes, and complex threading.

Key Features & Advanced Engineering

• High-Rigidity Square Ram Structure: The CK5116 features a massive square ram designed for ultimate bending stiffness. This geometry provides superior vibration damping and anti-deflection properties, which are critical for maintaining tight tolerances during deep boring or heavy interrupted cuts.
• 30kW High-Torque Servo Drive: Powered by a 30kW AC servo motor paired with a 4-gear stepless speed regulation system. This configuration delivers massive low-end torque for heavy "skinning" cuts on raw castings and maintains ultra-stable rotation at high speeds for a flawless surface finish.
• Siemens 828D CNC Integration (Optional): The machine can be equipped with the industry-leading Siemens 828D CNC system, offering advanced motion control algorithms, graphical programming, and robust self-diagnostic tools to maximize uptime and productivity.
• Flexible Automated Tooling: To suit your specific manufacturing processes, the CK5116 offers an optional 4-station or 6-station vertical electric turret. Rapid indexing and high-precision locking significantly reduce non-cutting idle time.
• Industrial Guarding & Management (Optional): Designed for a clean and safe shop environment, the machine offers optional semi-enclosed protection and stainless steel crossbeam covers. An integrated automatic chip conveyor and high-capacity coolant system are available to extend tool life and simplify maintenance.
• Premium Cast-Iron Foundation: The base, column, and crossbeam are cast from high-strength, low-stress iron. Each component undergoes rigorous thermal aging to eliminate internal stresses, ensuring the machine retains its geometric precision for decades.
