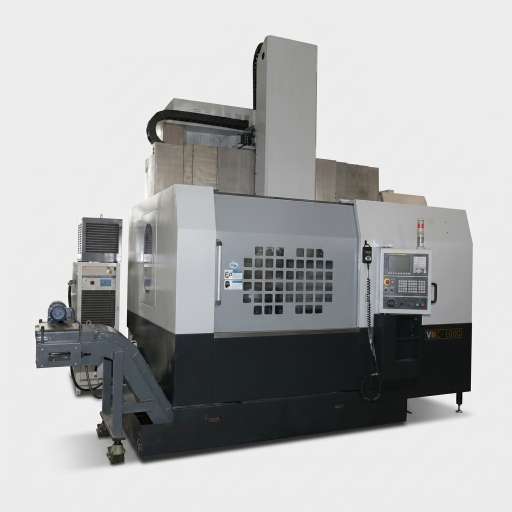

MFG Machinery CK51125 CNC Vertical Lathe (VTL)

Single-Column Architecture, 2-Speed Gearbox & T-Shaped Ram for Heavy Disc Machining

Product Overview
The MFG Machinery CK51125 is a heavy-duty, single-column CNC Vertical Turning Lathe (VTL) engineered for the high-precision machining of massive disc sleeves, covers, flanges, and cylindrical components.

Built upon a vibration-absorbing, high-strength cast iron foundation with a symmetrical box-type structure, this full-function VTL is designed to carry tremendous torque for aggressive heavy cutting. Equipped with a liftable crossbeam, a highly rigid T-shaped ram, and a high-power AC spindle motor with a 2-speed gearbox, the CK51125 effortlessly executes complex inner/outer cylindrical turning, conical profiling, arc surfacing, and precision threading (Metric/Inch). Featuring fully enclosed guarding and a centralized control system, it delivers a clean, safe, and highly efficient manufacturing solution for the heavy equipment, aerospace, and energy sectors.

Key Features & Advanced Engineering

• High-Rigidity Symmetrical Box Structure: The base, column, and crossbeam are cast from premium high-strength iron. The symmetrical box-type architecture provides exceptional shock absorption and thermal stability, enabling the machine to withstand the immense forces generated during heavy, interrupted cutting without deformation.
• T-Shaped Ram for Deep Boring: The vertical ram utilizes an optimized T-shaped structural design. This significantly maximizes rigidity and minimizes deflection, ensuring outstanding accuracy and tight tolerances even when the ram is fully extended for deep hole boring or heavy facing.
• High-Torque 2-Speed Spindle Drive: Powered by a high-capacity AC spindle motor paired with a robust two-speed gearbox. This transmission setup delivers massive cutting torque at low speeds for heavy roughing, while maintaining smooth, stable rotation at high speeds for fine finishing operations.
• Anti-Stick-Slip Hardened Guideways: The large-span machine guideways are induction-hardened, precision-ground, and meticulously hand-scraped. They are lined with a high-performance PTFE (Turcite-B) anti-friction coating to completely eliminate stick-slip, providing extremely low sliding resistance and guaranteeing long-term precision retention.
• Programmable Liftable Crossbeam: To accommodate workpieces of varying heights, the heavy-duty crossbeam is driven by a precision gear reducer and leadscrew. It can be securely locked at any position along its vertical stroke, maximizing the rigidity of the cutting zone.
• 4-Station Electric Turret: Equipped with a high-speed, heavy-duty 4-station vertical electric tool post (turret). It delivers rapid tool indexing and immense clamping rigidity, significantly reducing non-cutting idle time.
• Advanced Thermal Management: The main drive system is equipped with a dedicated spindle oil cooler to ensure optimal lubrication and prevent thermal expansion during continuous operation. A separate, movable cooling water tank is provided for easy chip cleaning and fluid maintenance.
• Fully Enclosed Guarding & Ergonomic Control: The machine features an environmentally friendly, fully enclosed guarding system to contain coolant and chips. An intuitive, centralized machine operation panel allows operators to program and monitor the machining process quickly and safely.
