MFG CH-SA Series Fully Automatic Rotary Angle Metal Bandsaws

Intelligent 0-45° Angle Cutting Solutions for Pipes, Profiles, and Heavy H-Beams

Series Overview

The MFG CH-SA Series represents our premier line of automated profile cutting bandsaws. Encompassing the CH-300SA, CH-400SA, and CH-600SA, this series is engineered to deliver flawless 90° straight cuts and 45° rotary angle sawing combined with fully automatic hydraulic feeding. Driven by an intelligent Hydraulic/Encoder angle rotation system, every machine in this series guarantees exceptional angular accuracy. Whether you are processing medium-sized 300mm tubes or massive 600mm structural steel, the CH-SA Series offers a high-efficiency, steplessly adjustable solution tailored to your exact production capacity.

Model Selection Guide: Data-Driven Performance

To meet diverse fabrication demands, the CH-SA series is distinctly categorized by cutting capacity, motor power, and blade management systems:

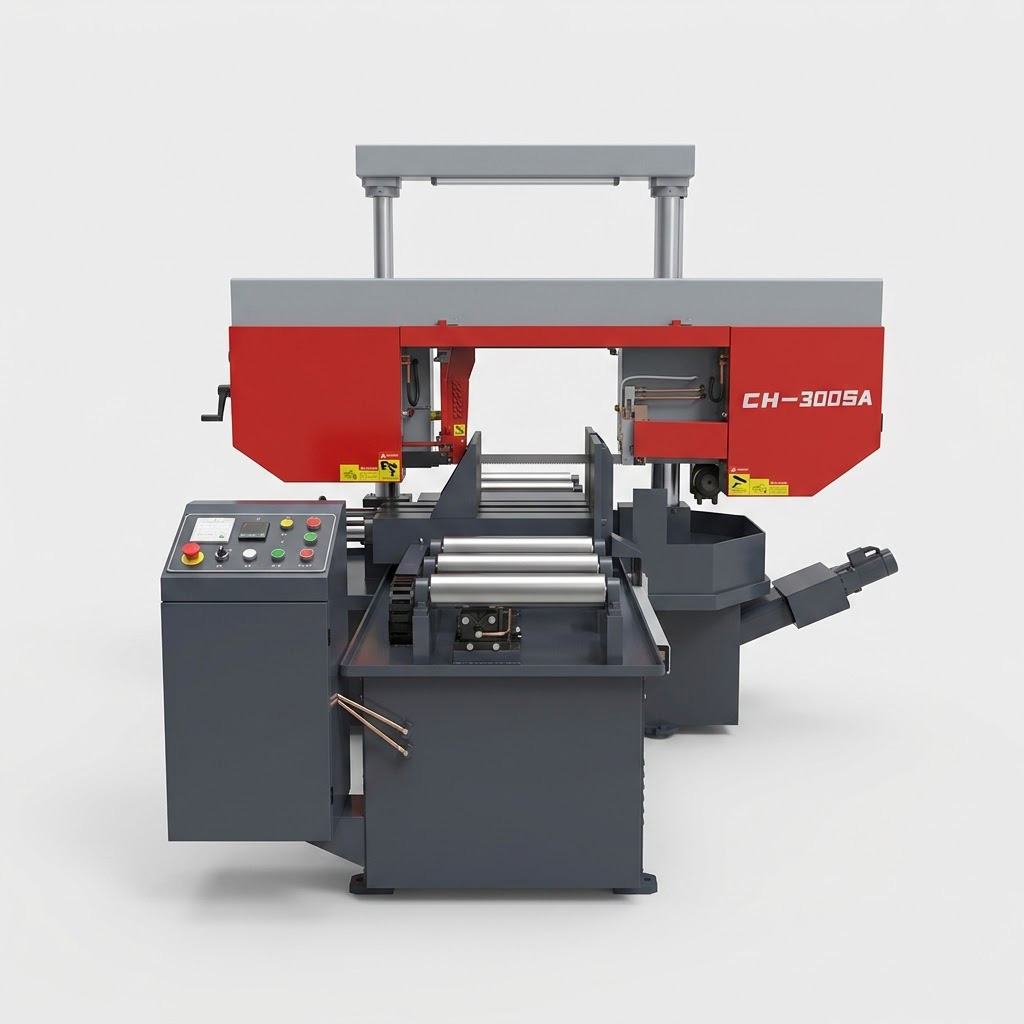

• CH-300SA (Medium Capacity Profile Expert): The ideal choice for processing standard profiles. It offers a 90° circular cutting capacity of 300mm and is powered by a reliable 3kW main motor. It utilizes a manual saw blade tensioning system and maintains a compact footprint with a machine weight of 2190kg.

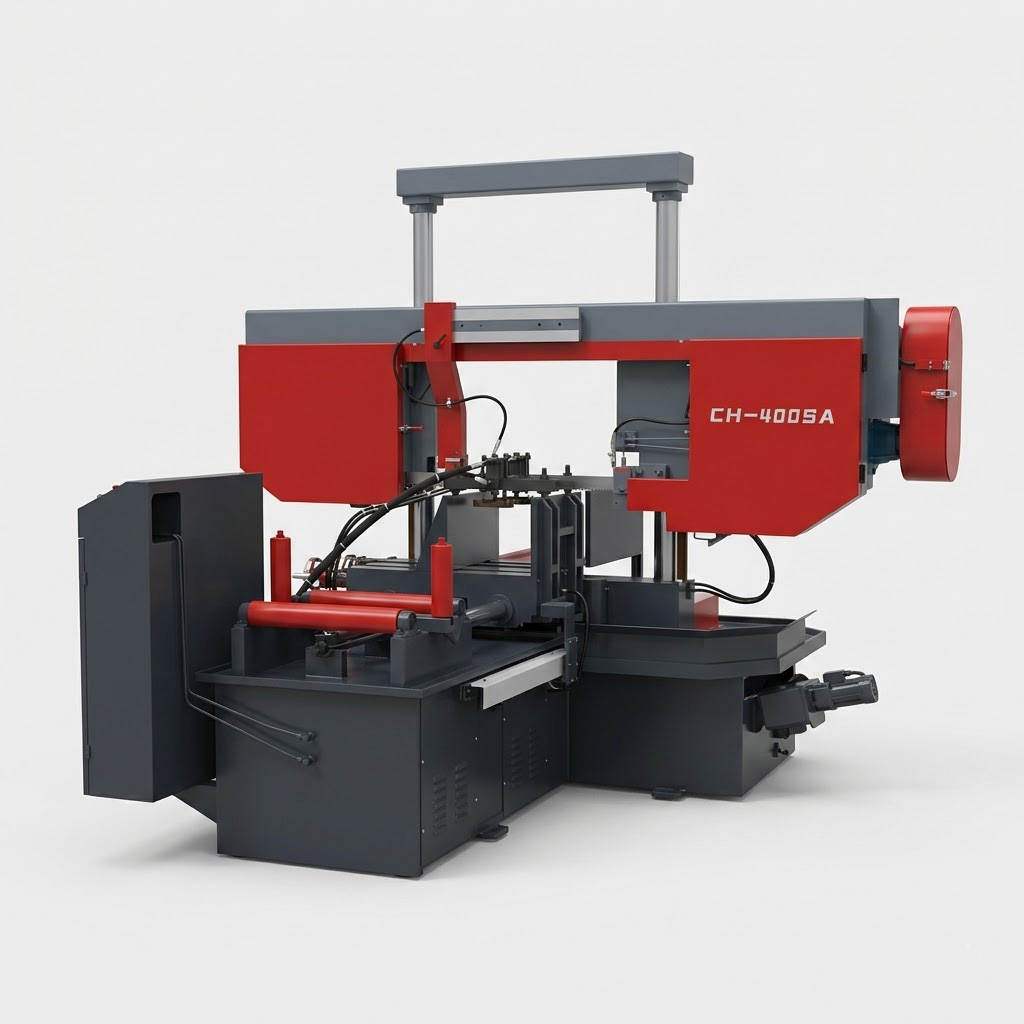

• CH-400SA (Heavy-Duty Structural Specialist): Stepping up in industrial capability, this model increases the 90° circular cutting capacity to 400mm and the motor power to 4kW. Crucially, it upgrades to a Hydraulic saw blade tension type for easier operation and more consistent blade rigidity during tougher cuts.

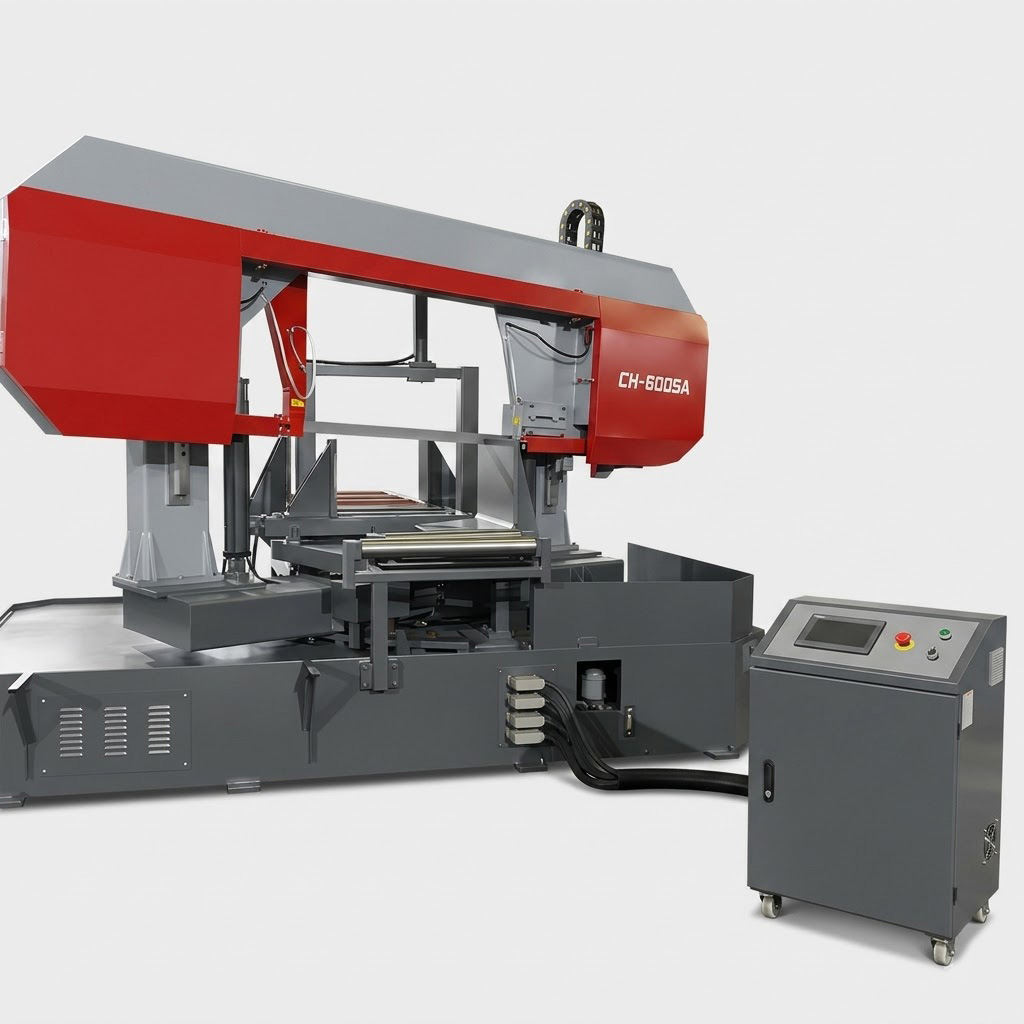

• CH-600SA (Massive Gantry Flagship): The ultimate 6000kg behemoth for extreme structural applications. It tackles massive 600mm materials at both 90° and 45° (circular). It features a powerful 7.5kW main motor, hydraulic blade tensioning, and an expanded blade speed range of 20~90 m/min, utilizing an ultra-wide 41x1.3x8950 mm blade for unmatched cutting stability.

Technical Specifications Comparison

(Compare the exact capabilities of the CH-SA series to find the perfect fit for your workshop)
