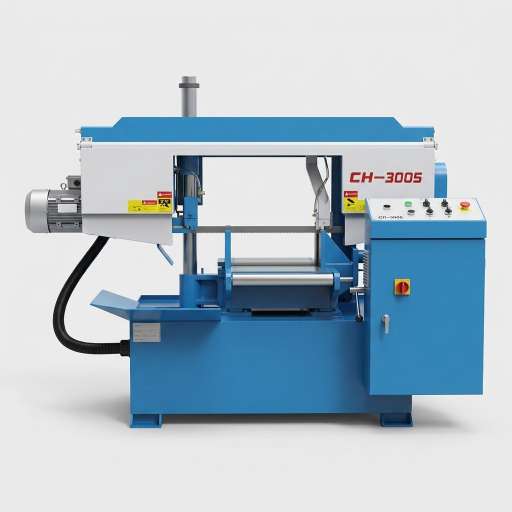

MFG CH-300S Horizontal Rotary Angle Metal Bandsaw

Engineered for High-Precision 0-60° Angle Cutting of Pipes and Profiles

Product Overview

The MFG CH-300S is a highly versatile, fully automatic horizontal bandsaw specifically designed for processing small to medium-sized round pipes, square tubes, and complex profiles. Going beyond standard 0° straight cuts, this advanced machine features a robust 0-60° rotary angle sawing capability. Driven by an intelligent PLC control system and highly accurate hydraulic automatic feeding, the CH-300S delivers a narrow kerf, exceptional material savings, and high-efficiency production, making it an indispensable asset for modern metal fabrication workshops.

Core Technological Advantages

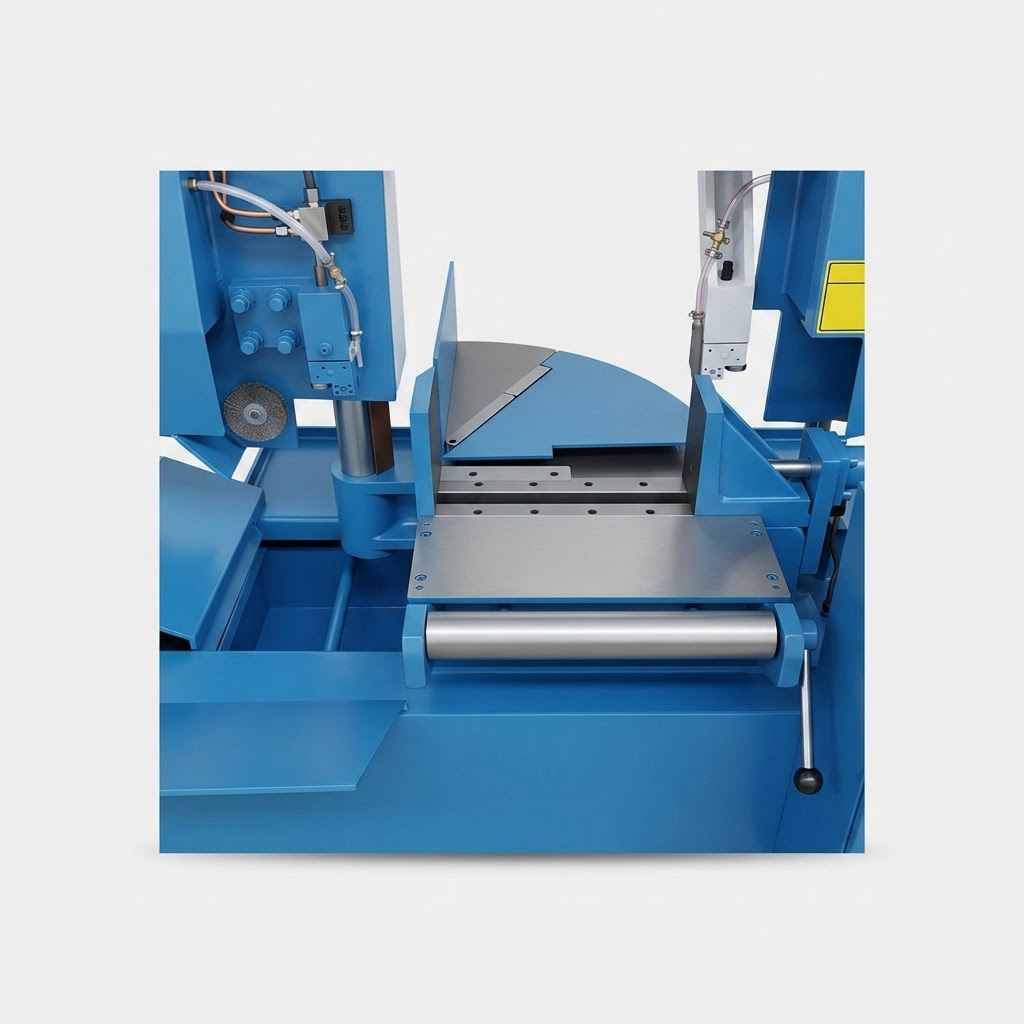

• Precision Angle Rotation (0-60°): The rotary seat is driven by a heavy-duty hydraulic cylinder and meticulously measured by a rotary encoder, which automatically calculates the exact rotation angle. Once reached, an independent hydraulic locking cylinder secures the seat in the T-slot, completely eliminating angular deviation or displacement during the cut.
• Intelligent PLC & Touchscreen Control: Traditional buttons are replaced with a centralized, user-friendly touchscreen interface. Operators can effortlessly program up to 5 different feeding lengths and times simultaneously.
• Optical Grating Ruler Integration: The automatic hydraulic feeding system utilizes a high-precision grating ruler for length detection, guaranteeing flawless dimensional accuracy across continuous cutting cycles.

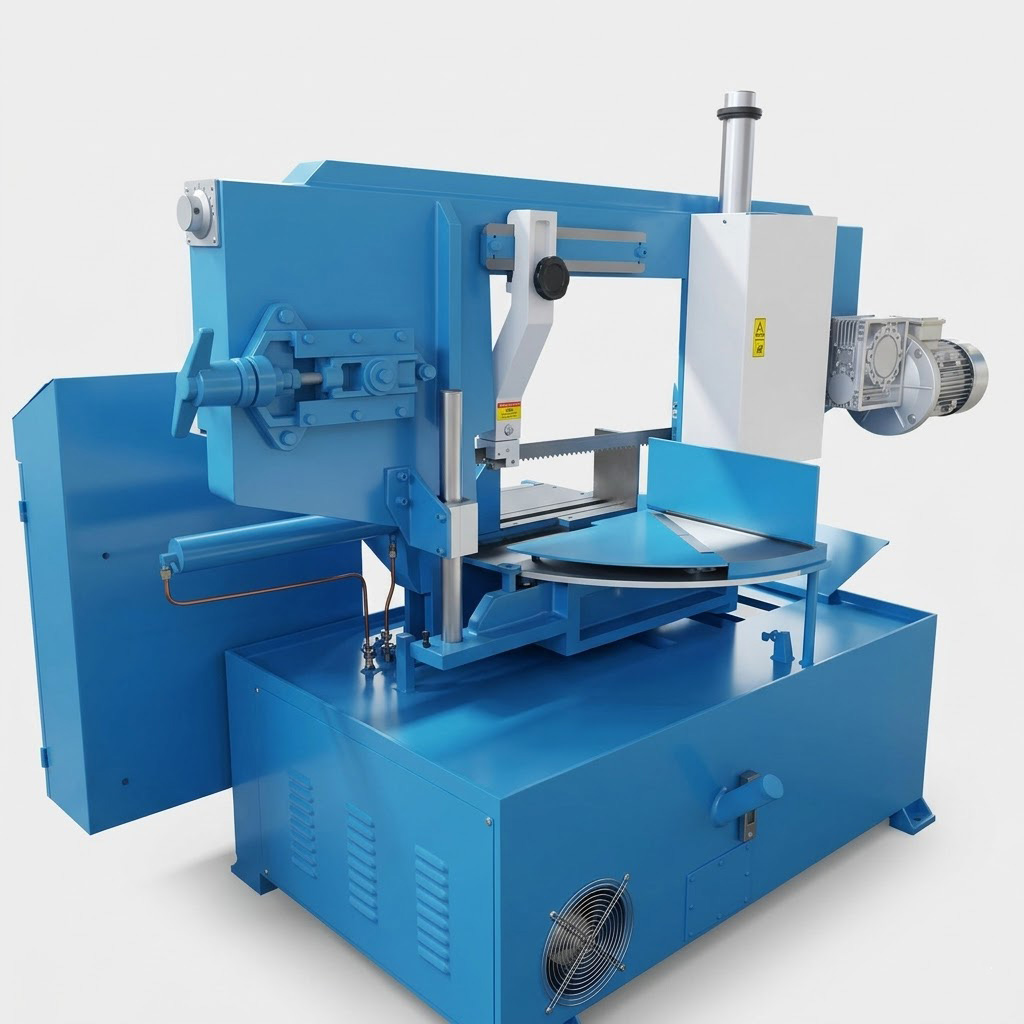

• Stable Dual-Column Architecture: Utilizes a robust cylinder piston rod as the main column, perfectly paired with an auxiliary small cylinder on the left end. This synchronized dual-column design ensures smooth, vibration-free up-and-down movement of the saw frame.

Equipment Structure & Main Components

The CH-300S is built with premium, modular industrial components designed for maximum durability and effortless maintenance:
