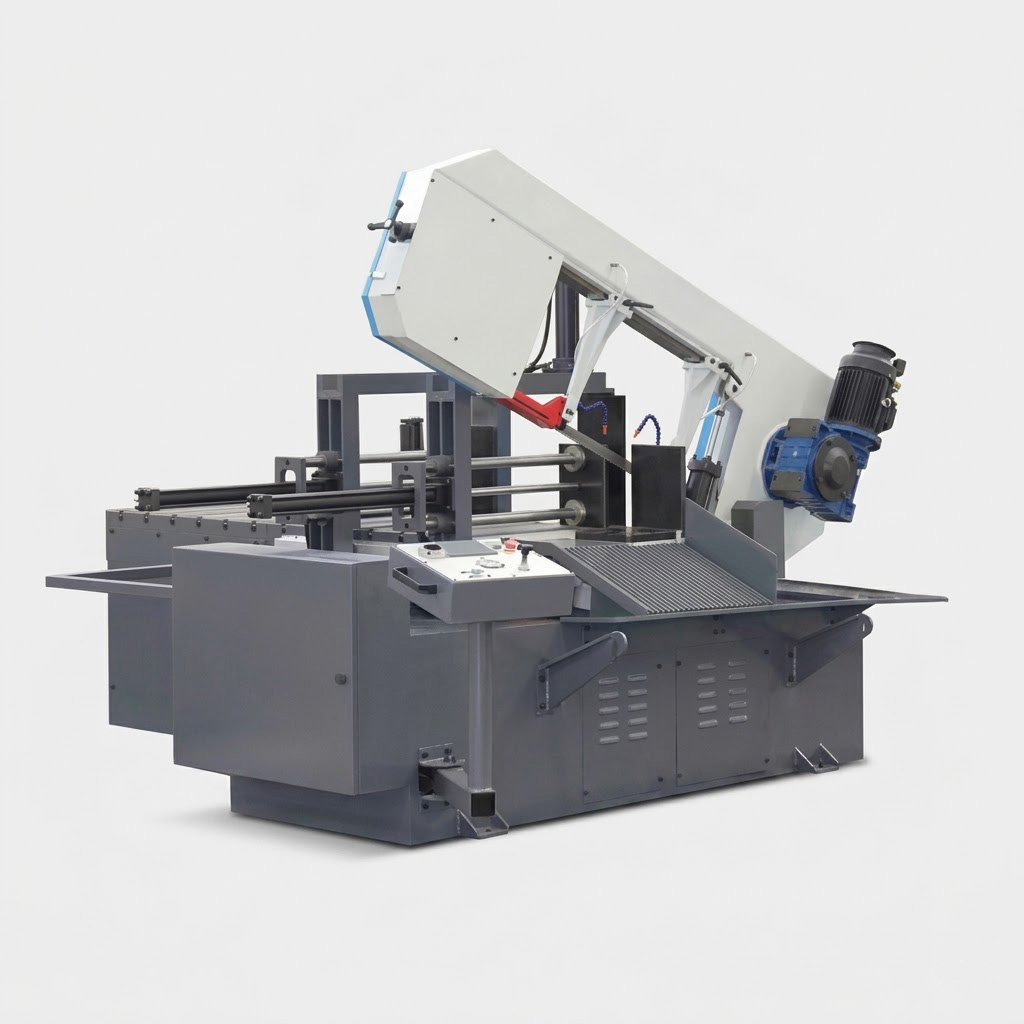

MFG BS-650G Fully Automatic Servo-Driven Miter Bandsaw

Industrial-Duty 18" Cutting Capacity with Auto-Swiveling Saw Frame & Precision Linear Scale

Product Overview

The MFG BS-650G is an elite, fully automatic horizontal miter bandsaw engineered for high-volume, heavy-duty industrial fabrication. Setting a new standard in metal processing, this machine is powered by a robust 5.5 kW servo motor coupled with an industrial-duty gearbox, delivering unmatched torque, variable speed control, and energy efficiency. Its standout feature is the fully automated swiveling saw frame, which completely eliminates manual angle adjustments. Combined with hydraulic clamping, automated feeding, and a massive 460mm (18") cutting capacity, the BS-650G is the ultimate solution for achieving uncompromising precision and maximum throughput in heavy structural steel applications.

Key Features & Benefits

• Servo-Driven Gear Transmission: Powered by an advanced 5.5 kW servo motor and a heavy-duty industrial gearbox. This ensures highly responsive, variable cutting speeds (23-95 rpm) with consistent torque, allowing operators to effortlessly slice through the toughest alloys and solid bars.
• Fully Automated Miter Swivel: Features an intelligent, automatically swiveling saw frame. This eliminates the heavy physical labor and downtime associated with manual angle adjustments, drastically speeding up complex multi-angle production runs.
• Massive 18" Cutting Capacity: Designed for the largest profiles, it delivers a massive 460mm (18") circular cutting capacity and handles 650x350mm (25.6"x13.8") rectangular materials at a straight 90° angle.
• High-Efficiency Auto Feeding & Clamping: Equipped with a powerful hydraulic clamping vice and a highly efficient automatic feeding system. With a maximum single feeding stroke of up to 650 mm, it ensures rapid, continuous batch processing without manual intervention.
• Pinpoint Linear Scale Accuracy: Integrates a highly accurate linear scale indicator to precisely record and control the feeding position, guaranteeing strict dimensional tolerances and perfect repeatability on every cut.
• Ergonomic Swivel Control Panel: The centralized, swiveling control panel is smartly mounted on the base, allowing operators to quickly access all automated functions and adjust settings from the most comfortable working position.

Technical Specifications

(Compare the exact heavy-duty capabilities of the BS-650G for your industrial requirements)
