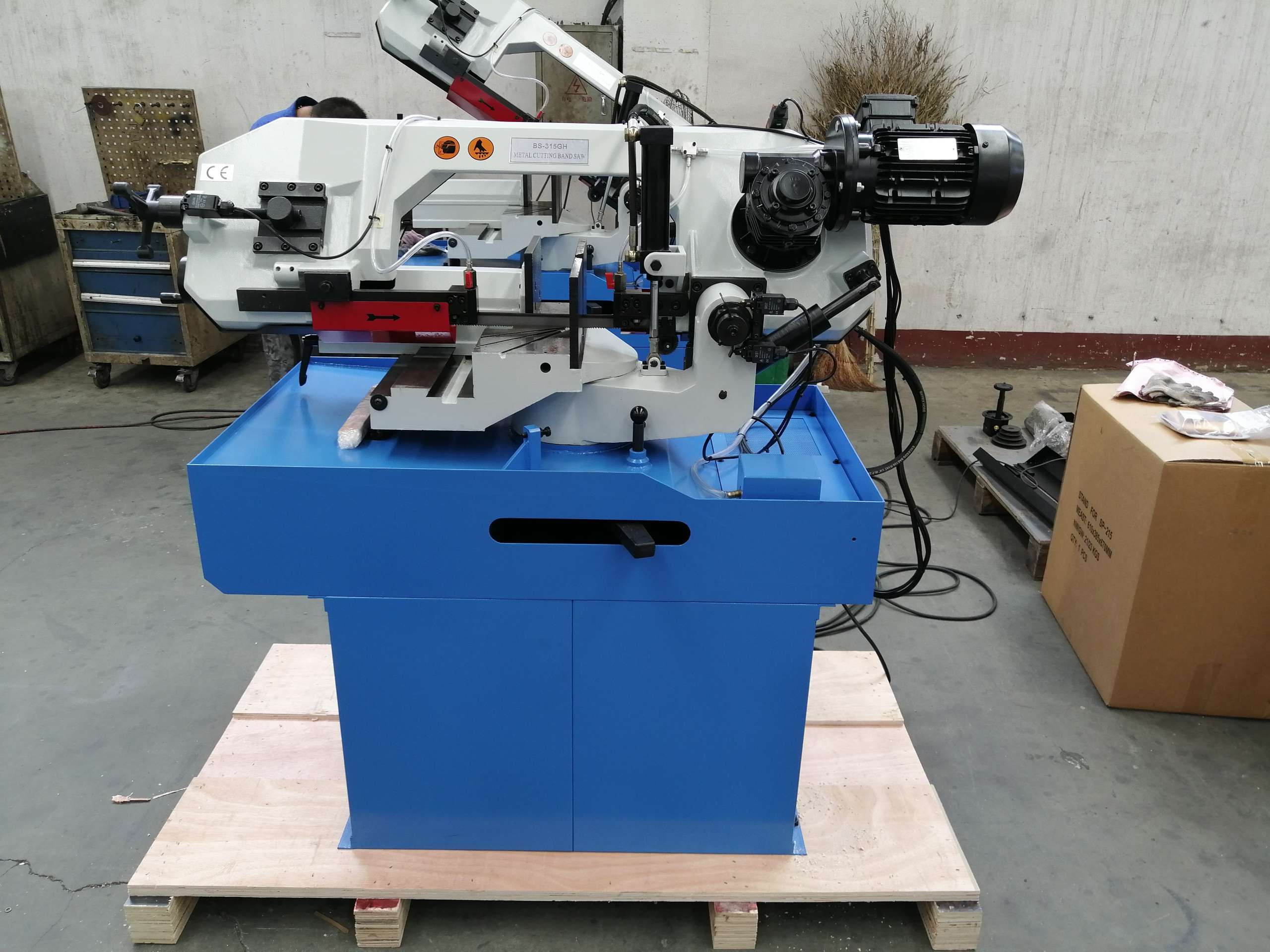

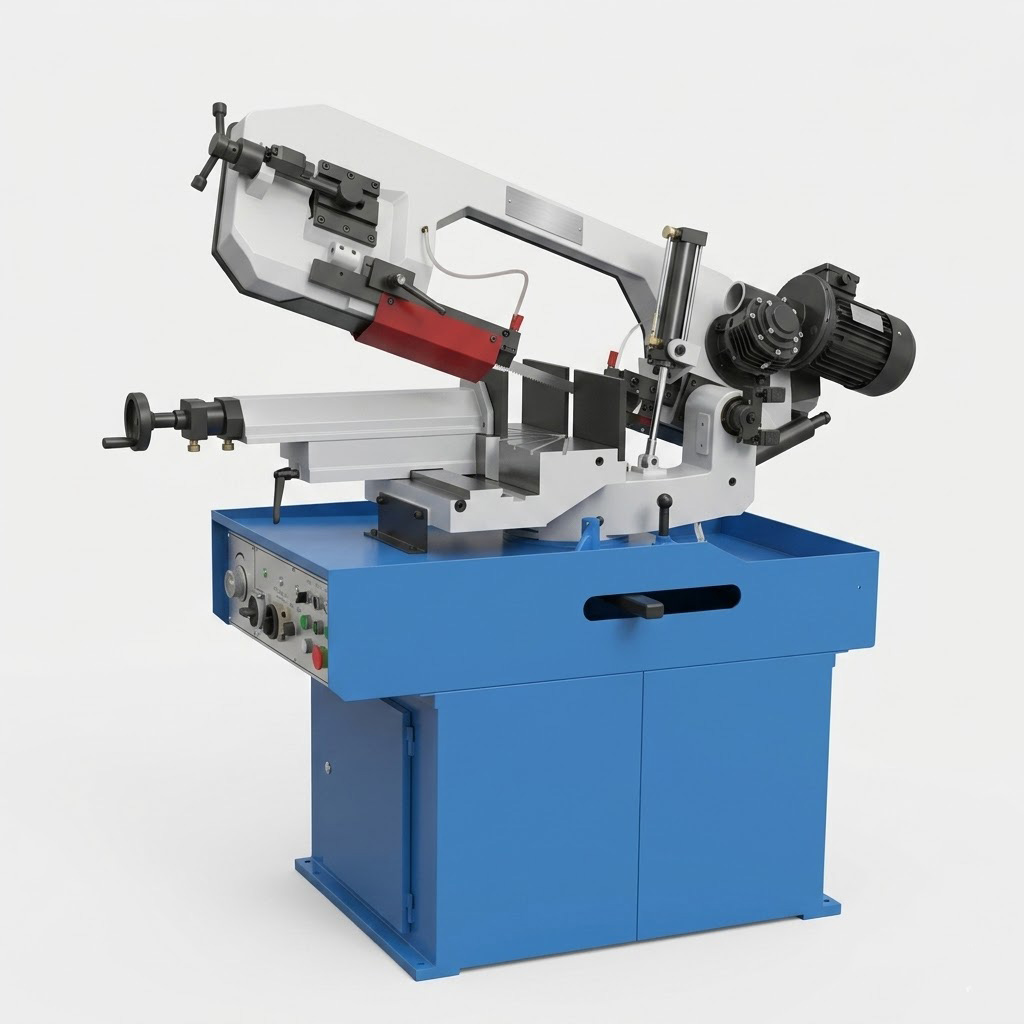

MFG BS-315GH 10" Gear Drive Bilateral Miter Bandsaw

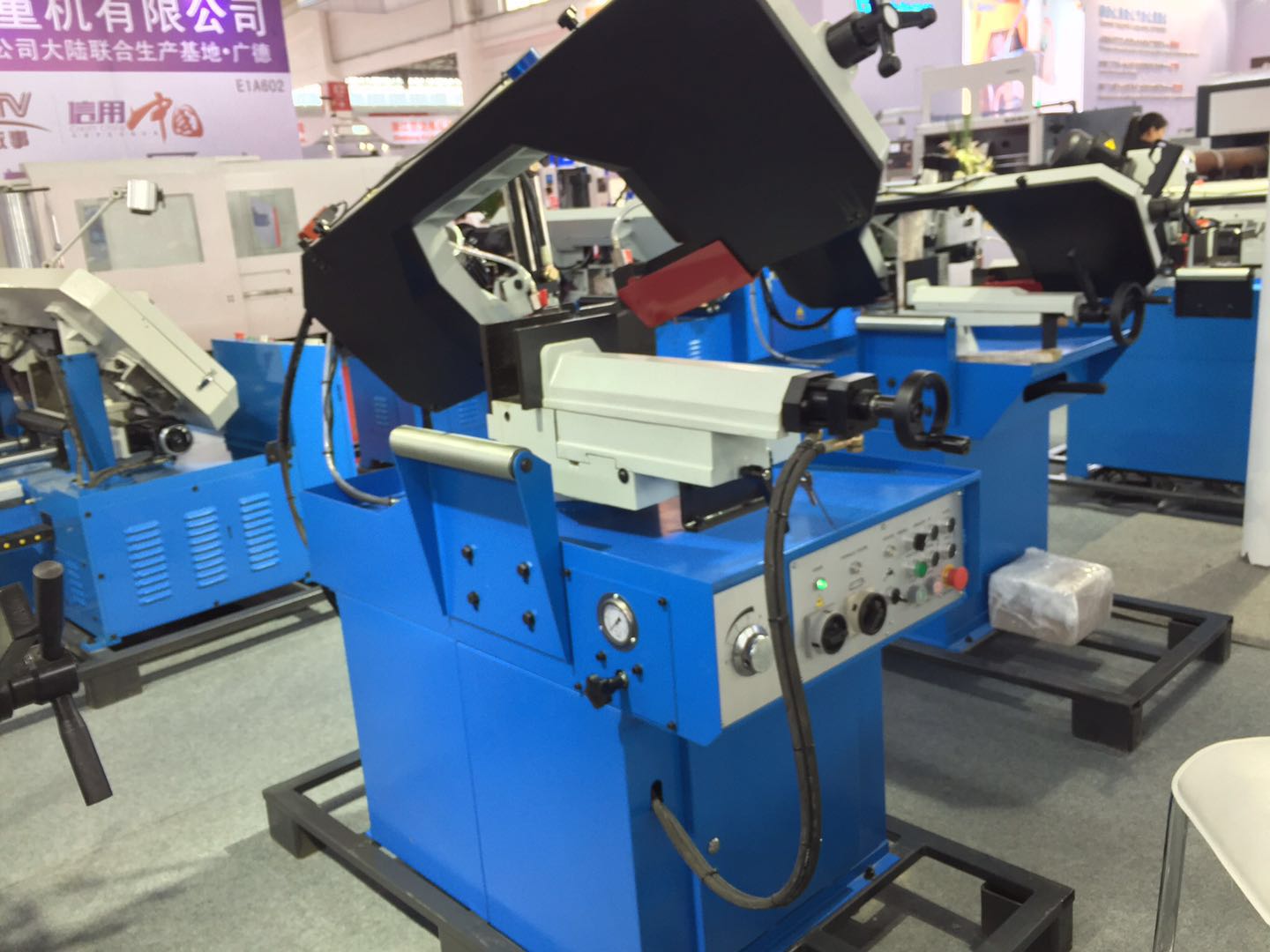

Heavy-Duty Industrial Cutting with Dual-Side 60° Swivel & Hydraulic Clamping

Product Overview

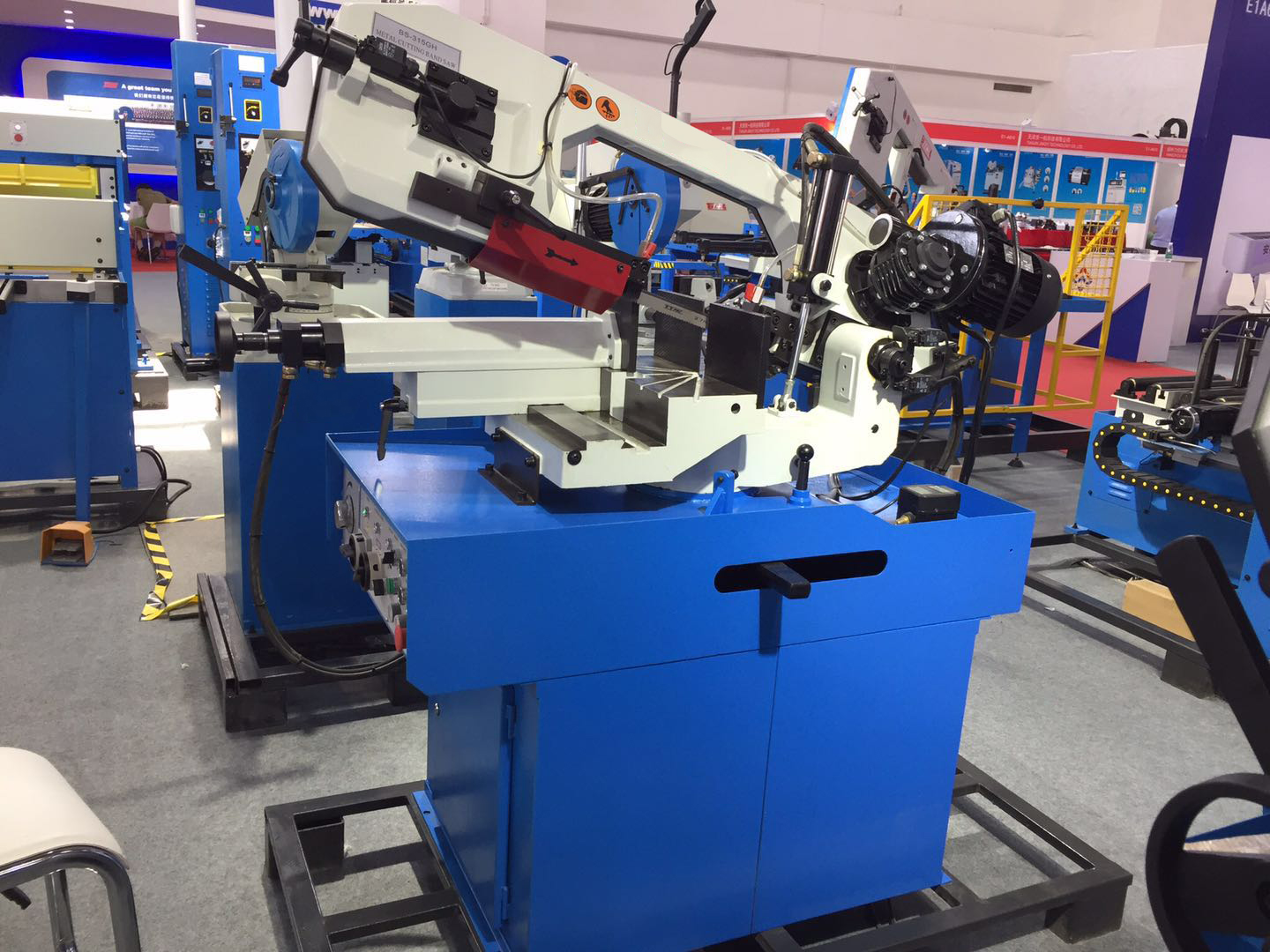

The MFG BS-315GH is a top-tier, heavy-duty horizontal bandsaw engineered to maximize efficiency and precision in professional metal fabrication environments. Weighing in at a robust 380kg, this machine offers exceptional vibration dampening for the toughest materials. Driven by an industrial-grade gear transmission and a powerful 1.1/1.5 kW 3-phase double-speed motor, it delivers slip-free, high-torque cutting power. Setting itself apart from standard saws, the BS-315GH boasts a massive 255mm (10") cutting capacity and features an advanced bilateral swivel bow capable of making miter cuts up to 60° on both the left and right sides. Combined with a hydraulic clamping vise and hydraulic descent, it ensures incredibly fast setup times, superior precision, and maximum operator safety.

Key Features & Benefits

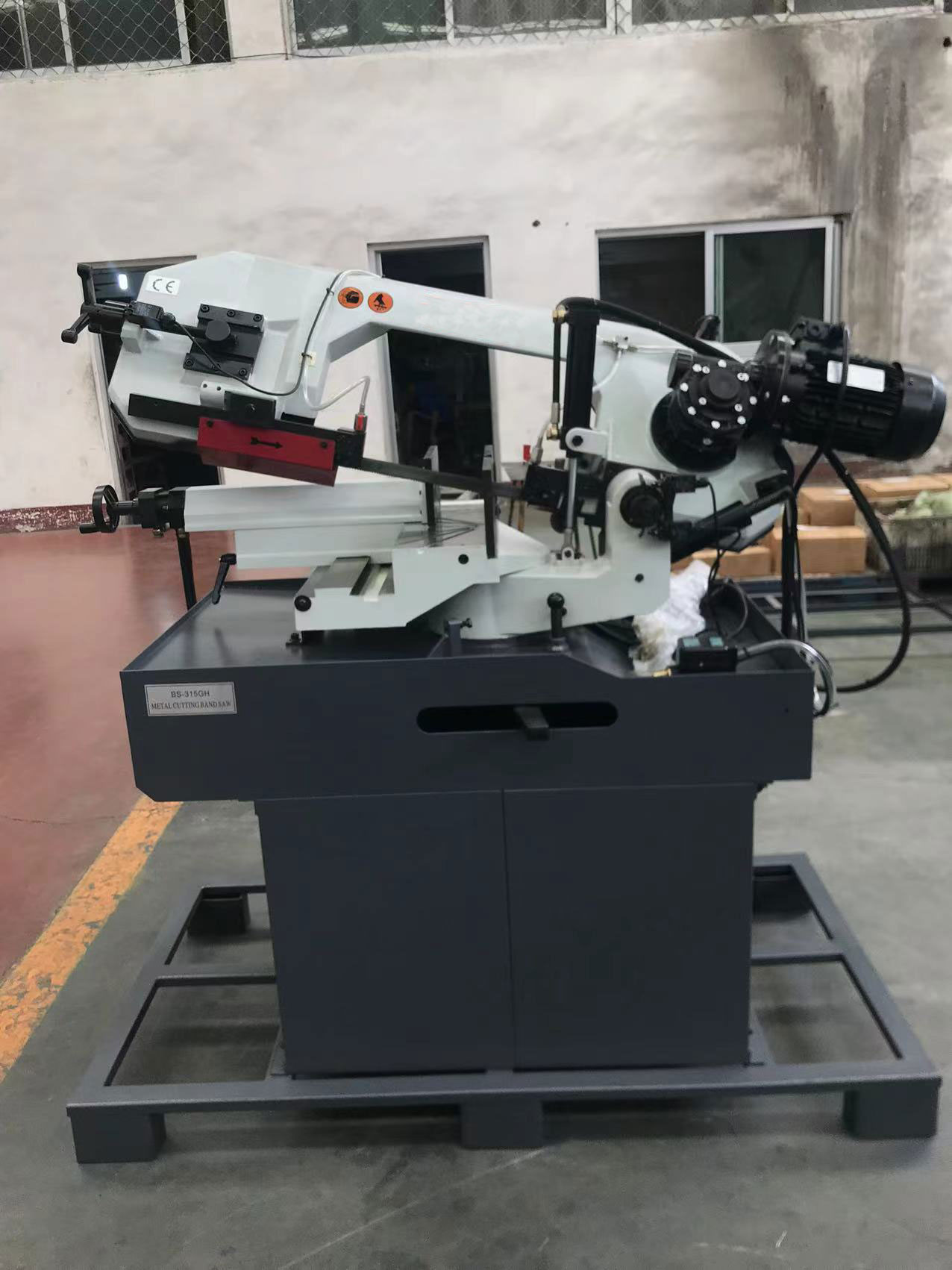

• Upgraded 10-Inch Cutting Capacity: Built for serious industrial tasks, it delivers a highly capable 255mm (10") circular cutting capacity and a massive 315x170mm (12.4"x6.7") rectangular capacity at a straight 90° angle.
• Bilateral Swivel Bow (Dual Miter to 60°): The highly versatile saw head can swing up to 60° on both the left and right sides. This dual-miter capability completely eliminates the exhausting and time-consuming process of flipping heavy, long materials to cut opposite angles.
• Effortless Hydraulic Clamping: Upgraded with a powerful hydraulic vise, allowing operators to securely lock down workpieces instantly. This ensures the material is held rigidly in place, improving safety and preventing blade damage caused by material shifting.
• Powerful Gear Drive & Dual-Speed Motor: Features a direct-drive industrial gearbox paired with a robust 1.5/2.0 HP (3-Phase) double-speed motor. This provides consistent power transfer and allows operators to select the optimal blade speed (35/70 MPM at 50Hz) for varying material hardness.
• Smooth Hydraulic Descent: Equipped with an fully adjustable hydraulic cylinder for stepless, controlled saw bow descent. This allows for precise management of the feeding speed, ensuring exceptionally clean cuts and extending the life of the 2825mm bimetallic blade.
• Quick-Action Angle Setup: Features a quick-action lock/release lever for the swivel head, enabling operators to rapidly and securely set precise cutting angles, significantly accelerating batch production workflows.
