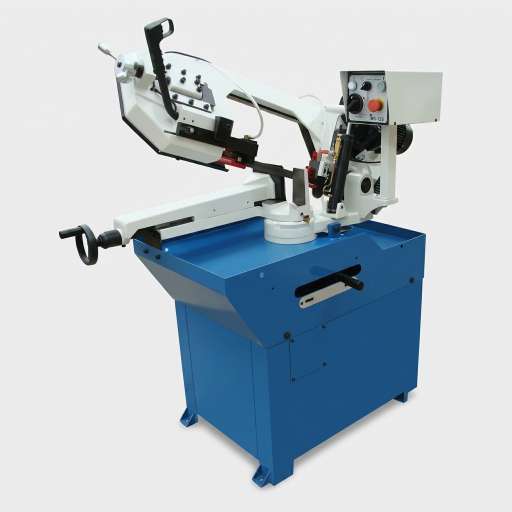

MFG BS-260G Gear Drive Horizontal Miter Bandsaw

Heavy-Duty Metal Cutting Solution with Hydraulic Descent and 60° Swivel Capability

Product Overview

The MFG BS-260G is a robust, high-performance horizontal miter bandsaw engineered to deliver precision and efficiency for demanding metalworking environments. Driven by a powerful gear transmission system, it provides consistent torque for smooth, slip-free operations. Featuring a heavy-duty cast iron saw frame, it minimizes vibration and allows for highly flexible miter cuts up to 60°. Equipped with a stepless hydraulic descent system and a substantial 227mm (9") circular cutting capacity at 90°, the BS-260G ensures controlled, high-quality cuts across various metal profiles, tubes, and solid materials.

Key Features & Benefits

• Substantial Cutting Capacity: Delivers a reliable 227mm (9") circular cutting capacity and handles 260x200mm (10"x7.9") rectangular materials at a 90° angle, easily accommodating a wide range of heavy-duty processing needs.
• Cast Iron Swivel Bow (Up to 60°): The rigid cast iron saw frame provides superior vibration dampening for flawless cuts. The innovative swivel head design allows for versatile miter cuts up to a maximum of 60°, completely eliminating the need to awkwardly reposition heavy materials on the worktable.
• Smooth Hydraulic Descent: Upgraded with an adjustable hydraulic cylinder for controlled, stepless saw bow descent. This ensures optimal feed rates, dramatically extends blade life, and delivers exceptionally clean surface finishes.
• Quick-Action Lock/Release Lever: Engineered with a quick-action lever for the swivel head, enabling operators to rapidly and securely adjust cutting angles, drastically reducing setup time between different batch jobs.
• Repeatable Accuracy: Includes an adjustable material length stop rod, allowing operators to achieve fast, precise, and highly repeatable cutting lengths for efficient batch production.
• Accessible Control Panel: The centralized control panel is strategically mounted for immediate, ergonomic access, streamlining the workflow and keeping all essential switches within arm's reach.
• Integrated Coolant System: Comes standard with a comprehensive coolant system that continuously washes metal chips away from the blade and lubricates the teeth, significantly extending tooling lifespan and preventing heat distortion.

Technical Specifications

(Compare the exact capabilities to see how the BS-260G fits your workshop needs)
