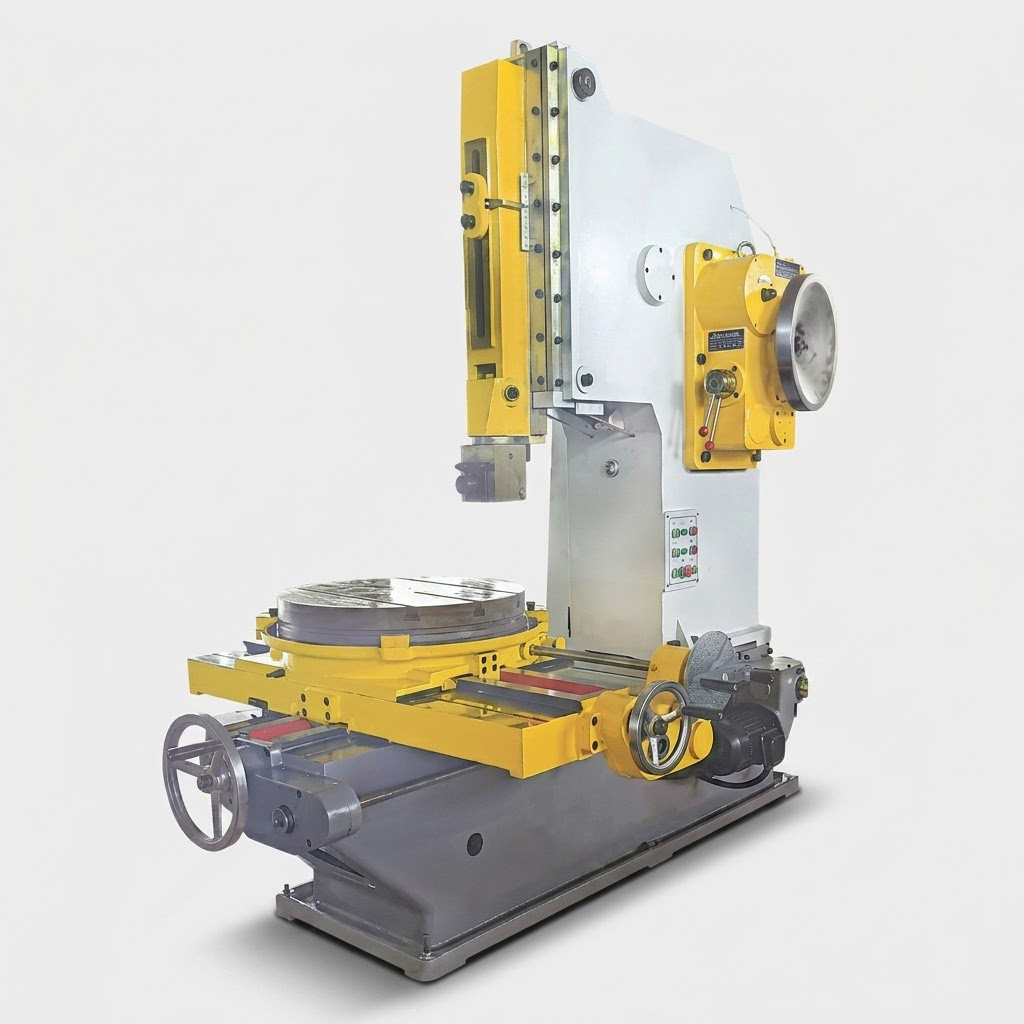

MFG BQ5040/BQ5040D Conventional Slotting Machine

Crank-Driven Ram, Power Feed Worktable & Auto-Stop Safety for Keyways and Splines

Product Overview
The MFG BQ5040/BQ5040D is a versatile, standardized mechanical slotting machine engineered for processing flat planes, formed surfaces, external/internal keyways, splines, internal gears, and various punching dies.

Designed with a highly compact structure and a logical layout, this machine provides safe, convenient, and reliable operation. It is an ideal cutting solution adaptable to a wide range of industrial environments, from high-volume mass-production facilities to single-piece fabrication shops and maintenance workshops.

Key Features & Engineering Details

• Crank-Driven Ram Mechanism: The main cutting stroke utilizes a heavy-duty crank mechanism. This engineered design efficiently converts the continuous rotary motion of the crank gears into a powerful, stable vertical reciprocating motion for the ram.
• Versatile 3-Axis Worktable: The machine features a rotary worktable mounted on robust upper and lower slide blocks. It supports longitudinal, transverse, and rotary movements. Operators can utilize both manual and power feed modes to accommodate complex internal profile machining.
• Integrated Safety Auto-Stop: To protect both the machine and the workpiece, the feeding system is equipped with a fail-safe mechanism that automatically stops the feeding process in the event of a malfunction.
• Robust Bed Construction: The foundation of the machine consists of heavy-duty upper and lower bed components, ensuring optimal rigidity and vibration absorption during continuous slotting operations.
• Standardized Modular Design: Built upon principles of standardization, generalization, and serialization, the machine integrates a dedicated feed box, gearbox, electrical system, and centralized lubrication system for simplified maintenance and long-term durability.
• Model D Rapid Traverse (BQ5040D): The "D" model configuration is equipped with an additional external rapid traverse device for the worktable, significantly reducing positioning time and increasing overall shop floor productivity.
• Customizable Power Integration: The machine comes standard with a 3-phase AC power supply (380V, 50Hz), which can be customized to meet specific regional customer electrical requirements.
