MFG B5020/B5032 Conventional Slotting Machine

Crank-Driven Ram & 3-Axis Intermittent Feed for Keyways, Splines, and Internal Gears

Product Overview

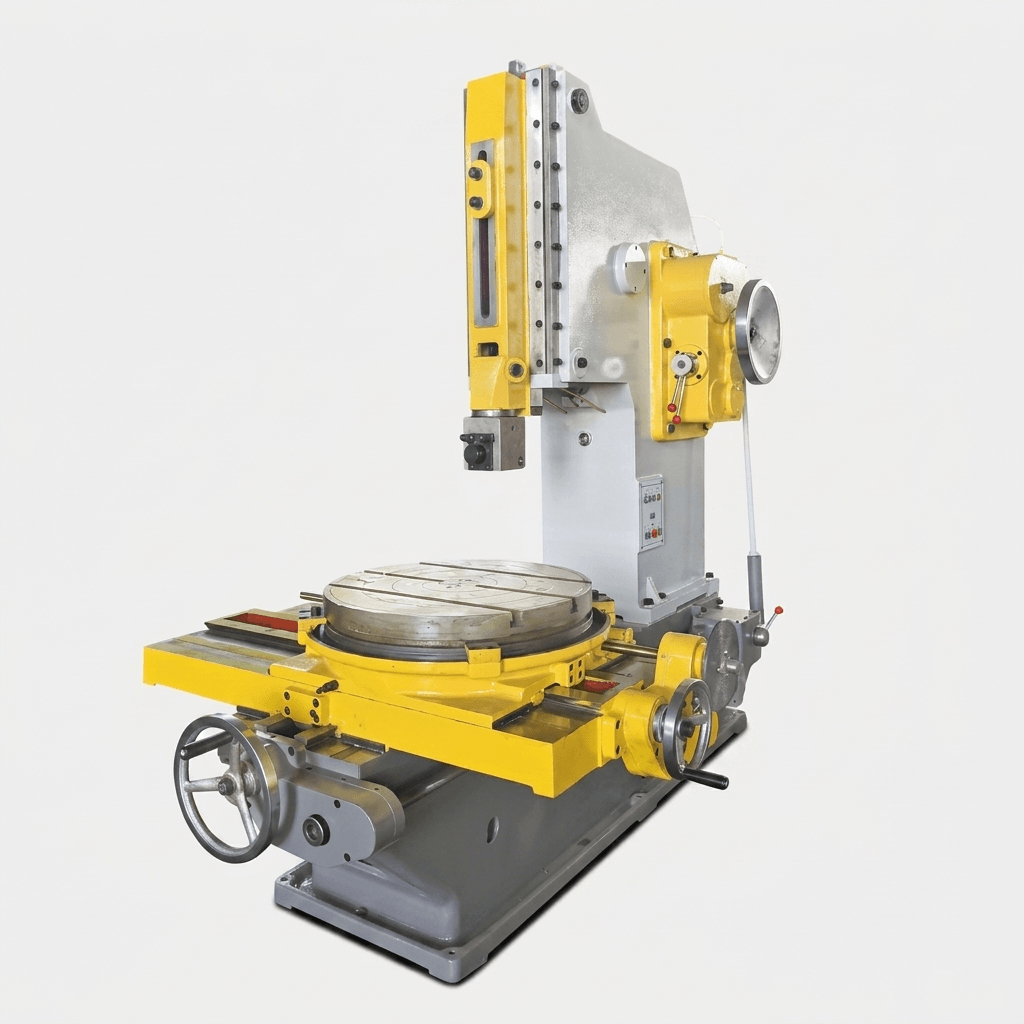

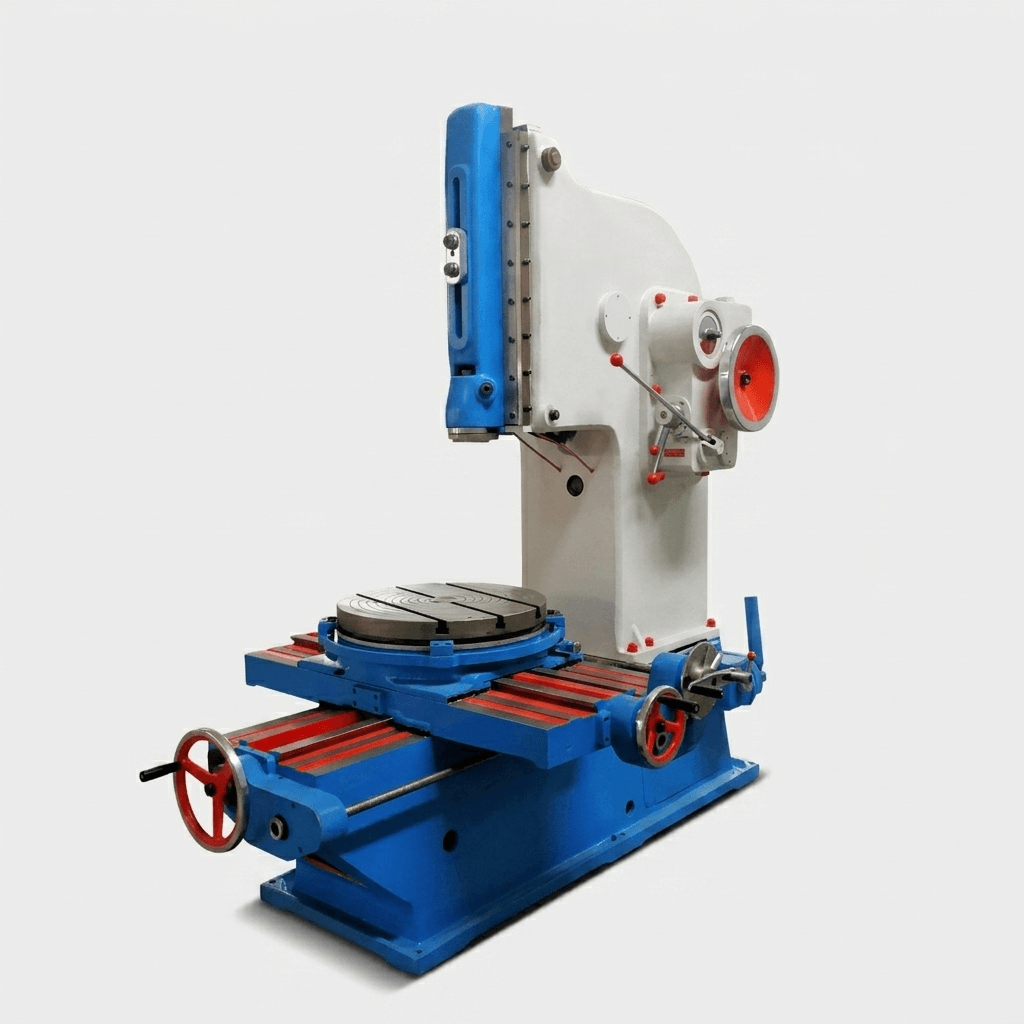

The MFG B5020/B5032 is a robust, conventional mechanical slotting machine engineered for machining flat planes, forming surfaces, external/internal keyways, splines, and internal gears.

Designed for maximum shop floor versatility, it is an essential piece of equipment for die manufacturing, mechanical repair shops, and both small-batch and high-volume production facilities.

Featuring a highly durable crank-driven ram, a dedicated gearbox, and a versatile circular worktable, this machine delivers reliable vertical cutting strokes and precise intermittent feeding for various metalwork applications.

Key Features & Engineering Details

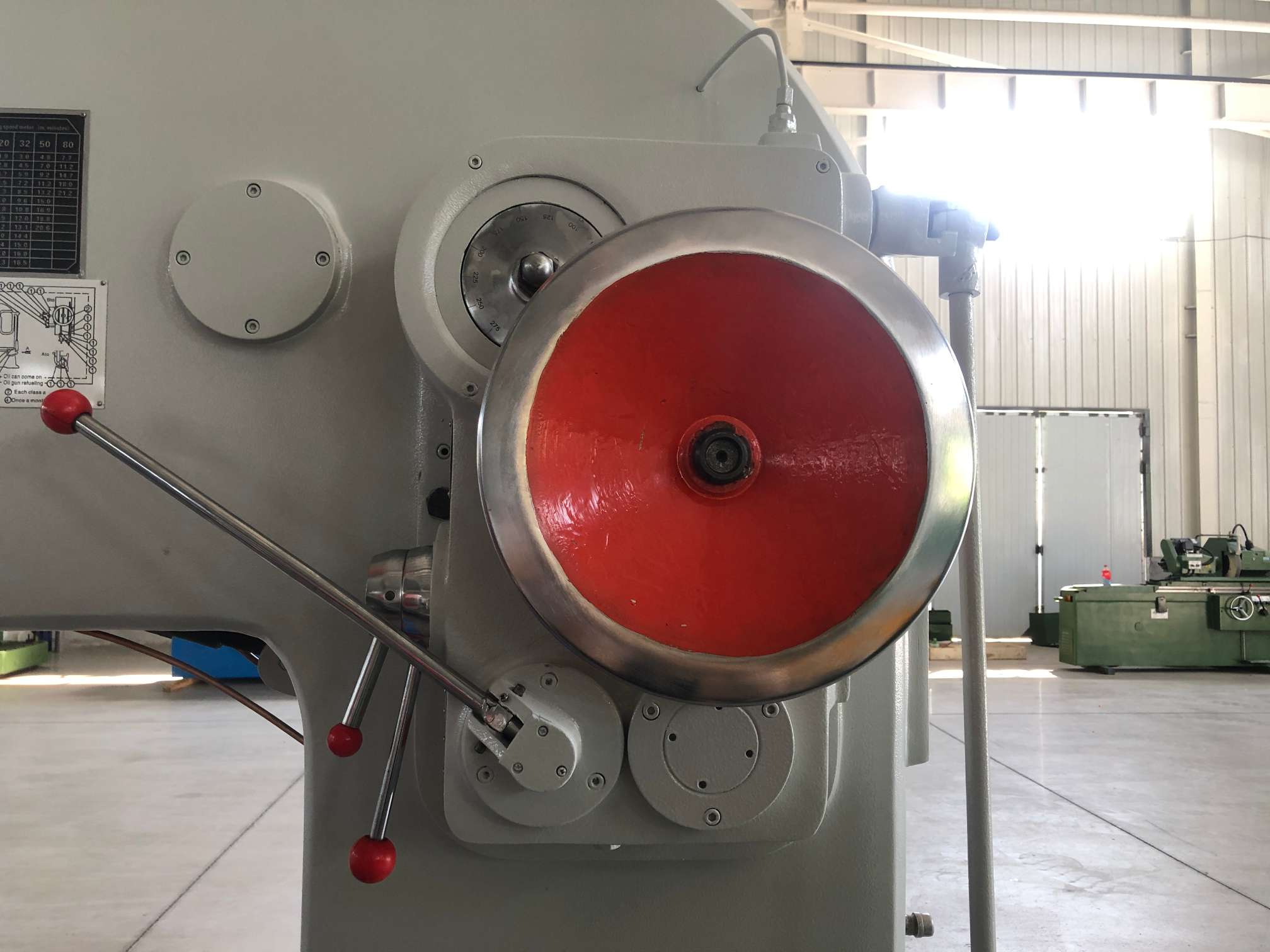

• Crank-Driven Ram Mechanism: The main cutting stroke is powered by a heavy-duty crank mechanism. This proven mechanical design efficiently converts the rotary motion of the internal crank gear into smooth, powerful vertical reciprocating motion for the slotting ram.

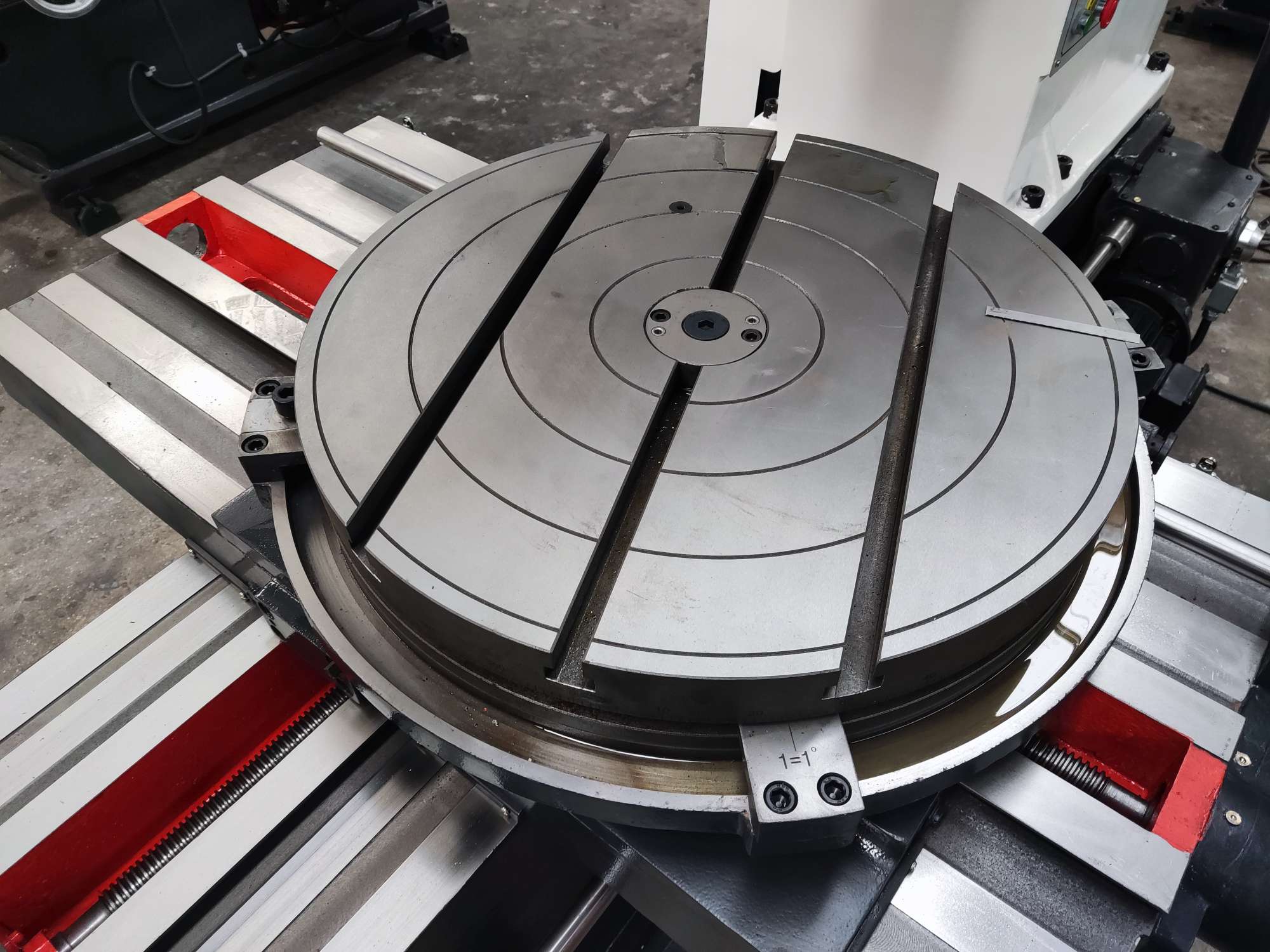

• Versatile 3-Axis Worktable: The machine is equipped with a circular rotary worktable mounted on an upper and lower slider system. It provides precise, intermittent feeding motion across three axes: longitudinal, transverse, and circumferential, allowing for complex internal profile machining.
• Heavy-Duty Bed Construction: Built for operational stability, the machine base consists of massive upper and lower bed castings. This provides a rigid foundation that absorbs cutting vibrations during heavy material removal.
• Integrated Mechanical Systems: The slotter is designed with independent mechanical modules, including a dedicated feed box, a main gearbox, and integrated electrical and lubrication systems to ensure long-term reliability.
• B5020D Rapid Traverse Configuration: The "D" type variant (B5020D) is specifically equipped with an external rapid moving device for the worktable. This feature significantly reduces non-cutting positioning time, improving overall operational efficiency.
• Standard Industrial Power: The machine operates on a standard 3-phase AC power supply (380V, 50Hz), ensuring seamless integration into standard global industrial power grids.
