Metal stamping involves many processes, such as sheet metal drawing, forming, flanging, punching, and straightening. For large parts, irregular shapes, and deep drawing items, many factories prefer a four-column hydraulic press.
At Shanghai MFG Machinery Equipment Co., Ltd., we help metalworking plants choose the right forming equipment. In this guide, we break down the core reasons why four-column hydraulic presses are the top choice for complex metal stamping.
1. Symmetrical Four-Column Structure for High Rigidity

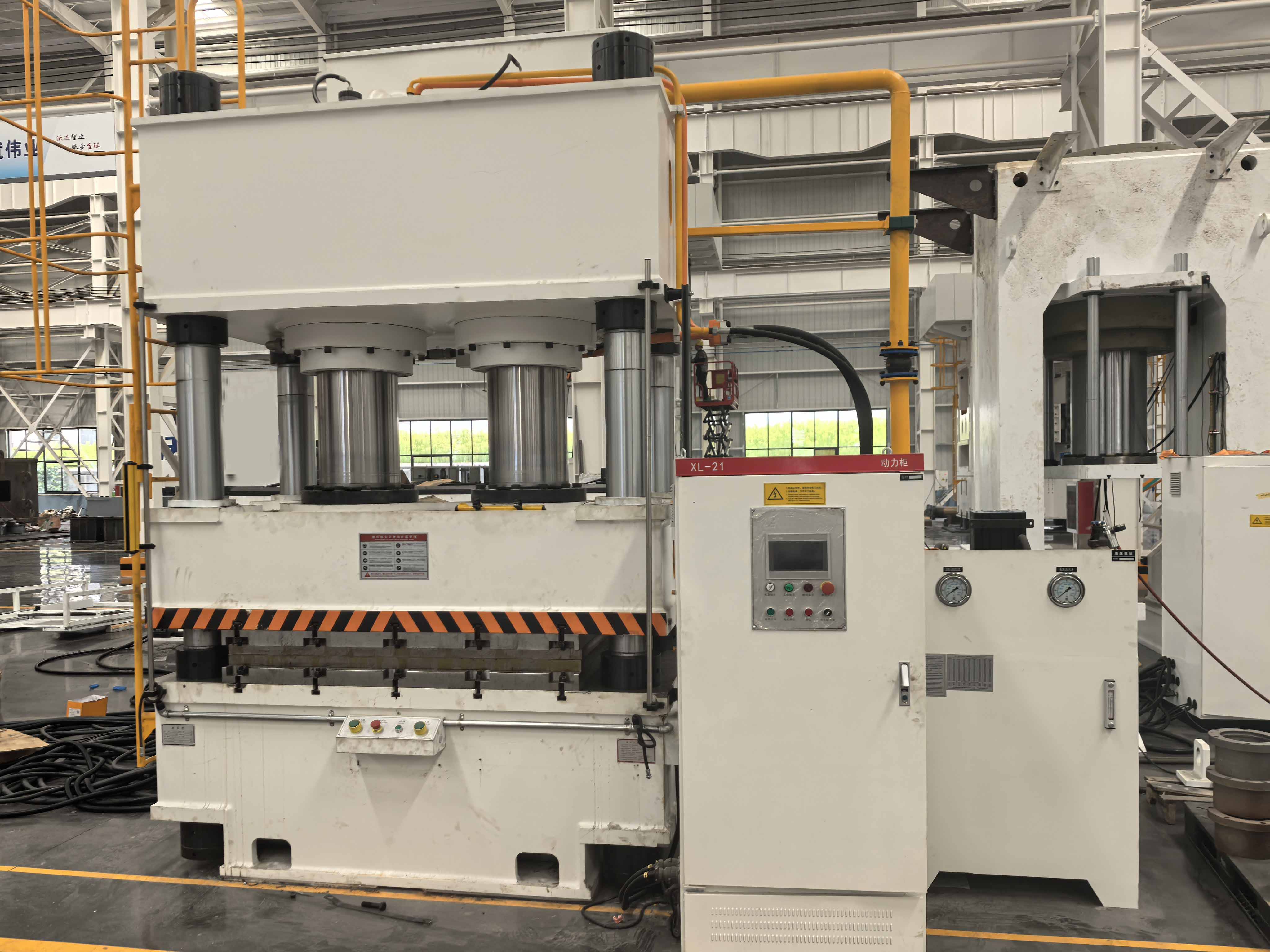

A four-column hydraulic press uses a closed-frame design with three beams and four pillars. The four columns guide the slide evenly, maintaining high parallelism between the slide and the worktable throughout the stroke.
Compared to a single-arm C-frame press (which can bend or tilt under eccentric loads), the four-column structure remains stable even with asymmetrical molds. This stability reduces part defects, prevents scratching or wrinkling, and extends mold life.
2. Full-Stroke Adjustable Pressure for Deep Drawing
Mechanical punch presses only deliver maximum tonnage at the bottom dead center. In contrast, a four-column hydraulic press can deliver rated pressure at any point along the stroke.
Operators can program speed, pressure, and dwell time. This allows multi-stage cycles—such as fast approach, slow pressing, pressure holding, and fast return—which are essential for preventing metal tearing or springback.
3. Comparison: Four-Column Hydraulic Press vs. Mechanical Punch Press
| Feature | Four-Column Hydraulic Press | Mechanical Punch Press |
| Pressure Control | Full-stroke adjustable pressure & dwell time | Maximum pressure only at bottom dead center |
| Best For | Deep drawing, forming, thick/large parts | High-speed punching, blanking, shearing |
| Eccentric Load Resistance | Strong (four-pillar guided) | Weak (prone to frame deflection) |
| Tool Protection | Automatic hydraulic overload relief | Rigid impact, higher risk of mold damage |
| Customization | Highly customizable (bed size, stroke, tonnage) | Standardized mechanical strokes |
4. Large Worktable & Wide Tonnage Range
Four-column presses offer flexible designs. Table size, daylight opening, and stroke length can all be customized. Tonnages range from tens of tons to thousands of tons.
Whether you are stamping small hardware or large automotive panels, appliance shells, and pressure vessel plates, a single machine can handle multiple molds by swapping tools for drawing, flanging, or straightening.
5. Built-In Overload Protection for Mold Safety
Hydraulic systems feature an overflow-based overload protection mechanism. If the stamping load exceeds the set limit, the system automatically releases pressure. This prevents hard mechanical crashes, protecting expensive custom molds and cutting scrap costs during trial runs.
6. Hydraulic Cushion Support for Deep Drawing
Metal deep drawing often causes wrinkling along the sheet edges. Four-column hydraulic presses can be equipped with a bottom hydraulic cushion. This provides stable, adjustable blank-holding force to control material flow smoothly—making it the ideal setup for stainless steel and aluminum deep drawing.
Limitations: When to Choose Other Machines?
Four-column hydraulic presses are not ideal for everything. For high-speed, simple mass-punching or high-volume blanking, traditional mechanical presses offer faster cycle times and lower costs.
When selecting your machine, always review required parallelism, bed dimensions, daylight, blank-holding force, and whether a servo system is needed. Remember: the thinner the sheet, the larger the part, and the deeper the draw, the higher the value of a four-column hydraulic press.
Conclusion
For large sheet metal components, deep drawing, and precision forming, the four-column hydraulic press is the ultimate solution. Backed by high rigidity, programmable pressure curves, and customizable options, it helps manufacturers improve product consistency and protect valuable tooling.
