Wondering what is live tooling on a CNC lathe and how it impacts your bottom line? Live tooling allows a lathe to perform milling, drilling, and tapping operations while the workpiece remains in the spindle.
By enabling true "one-setup machining," this technology drastically reduces production time, minimizes handling errors, and maximizes ROI for complex part fabrication.
In traditional turning operations, the fundamental principle has always been the same: the workpiece rotates at high speeds while a stationary cutting tool removes material.
However, modern manufacturing often requires parts with off-center holes, flat surfaces, or keyways.
This is where live tooling (also known as driven tools) changes the game. This guide explains how this technology works and why it is essential for scaling up your CNC machining capabilities.
What Exactly is Live Tooling?

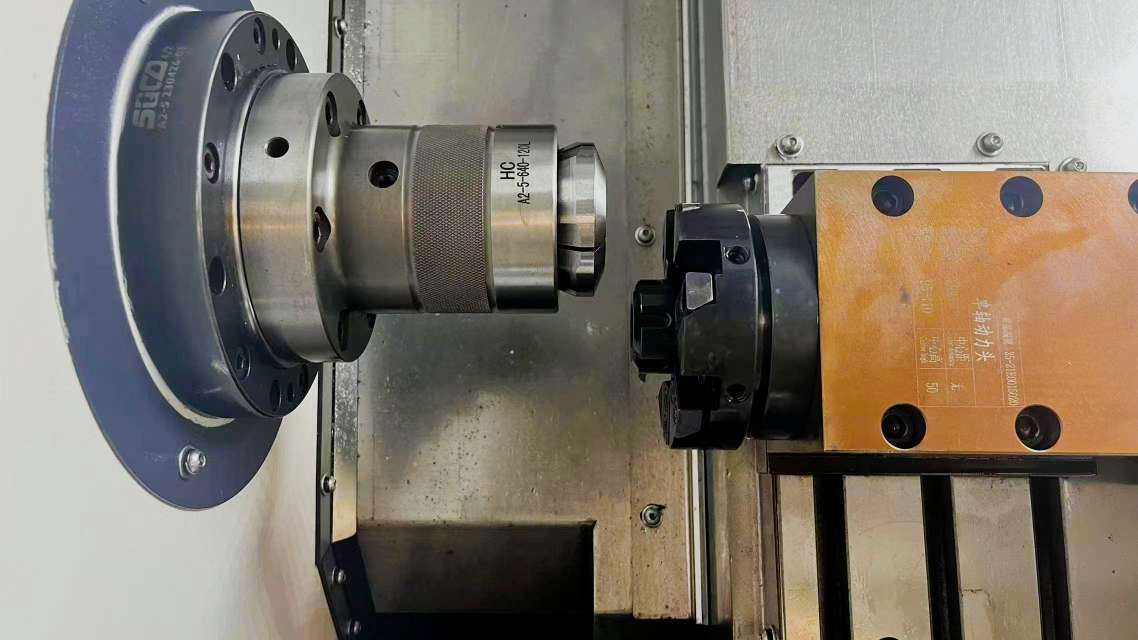

Live tooling is a specialized tool module equipped with its own independent motor, mounted on the turret of a CNC lathe. Unlike conventional stationary tools, live tools can rotate at high speeds on their own.
When paired with a machine's C-axis (which precisely positions and locks the main spindle at specific angles), live tooling allows the lathe to perform complex milling operations.
- Turn-Mill Capabilities: You can machine flats, keyways, and complex polygons on the side or face of a cylindrical workpiece.
- Off-Center Drilling and Tapping: Instead of being limited to drilling exactly on the center axis, live tooling allows for drilling and tapping anywhere on the part's face or outer diameter.
- One-Setup Machining: This completely eliminates the need to remove the part from the lathe and transfer it to a separate milling machine, significantly reducing secondary positioning errors.
Comparison: Traditional Turning vs. Live Tooling
To fully understand the efficiency gains, let's compare standard turning operations with a turn-mill setup using live tooling:
| Machining Aspect | Traditional Lathe | CNC Lathe with Live Tooling |
|---|---|---|
| Tool Status | Fixed tightly on the tool post, stationary. | Mounted on the powered turret, capable of high-speed rotation. |
| Spindle Action | Provides continuous high-speed rotation only. | Rotates at high speeds OR locks at specific angles (C-axis). |
| Machining Boundaries | Limited to cylinders, cones, threads, and facing. | Can machine off-center holes, side keyways, and complex polygons. |
| Workflow | After turning, the part must be moved to a milling machine. | Turning, milling, drilling, and tapping are done in one single setup. |
Why Conventional Lathes Don't Use Live Tooling
We are often asked if live tooling can be added to a manual or conventional lathe. The short answer is no.
Industrial conventional lathes lack the powered interfaces, servo systems, and the necessary C-axis control required to drive and synchronize rotating tools.
While some hobbyists might attach DIY milling attachments to manual lathes, these lack the rigidity and precision required for B2B industrial standards.
Live tooling remains an exclusive advantage of advanced CNC systems.
Doing More with Less: Why Growing Shops Love Live Tooling
Let's talk real-world ROI. If you're running a machine shop in fast-growing manufacturing hubs like Latin America (think Mexico and Brazil) or Southeast Asia, you already know the pressure is on: your customers want complex parts, and they want them fast.
But here's the catch: shop floor space is expensive, and buying multiple machines drains your budget. This is exactly where a CNC lathe equipped with live tooling becomes a total game-changer.

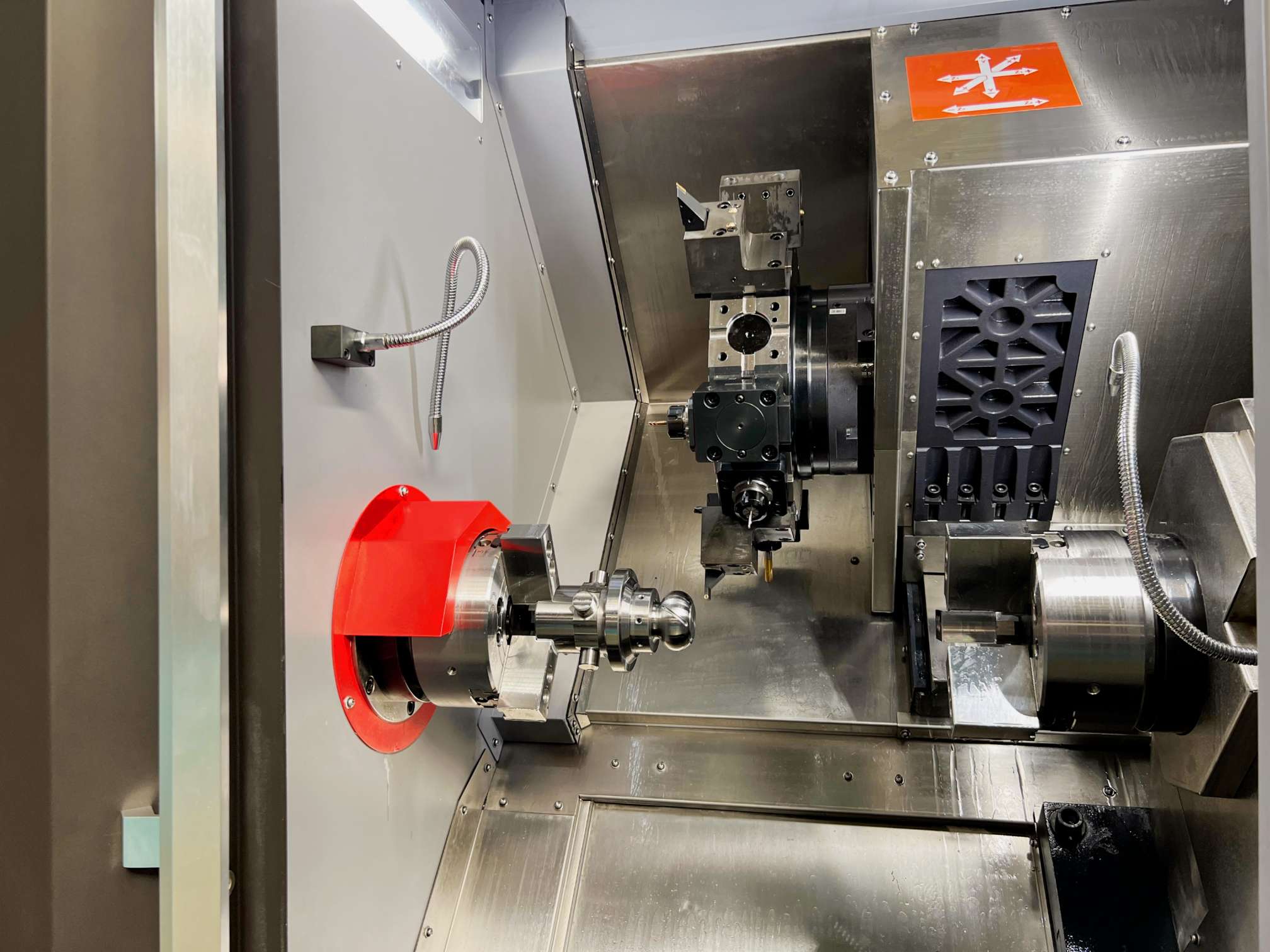

Instead of buying—and finding space for—both a standard lathe AND a vertical milling machine, a single turn-mill center handles the entire workflow. You put the raw material in, and the finished part comes out. By combining these operations, you instantly cut down labor costs, free up valuable floor space, and get your products out the door much faster. That’s what real profitability looks like.
