What are the differences between single-column and double-column metal band saws, and how to choose?
Choosing between a single-column and a double-column metal band saw is a critical decision that impacts your production efficiency, part precision, and long-term operating costs. At Shanghai MFG Machinery Equipment Co., Ltd., we frequently encounter clients struggling to balance initial investment with operational needs. Incorrect equipment choices often lead to frequent blade breakage, skewed cuts, and wasted labor.
This guide provides a clear breakdown of the structural differences and selection criteria to help you make the right investment.
I. Structural Principles
Single-Column (Cantilever/Scissor-style): The saw bow is supported by a single column on one side, pivoting downward from a hinge. This creates an arc-shaped cutting path. The design is simple, lightweight, and compact.
Double-Column: The saw bow is supported by two symmetrical, reinforced columns and moves vertically. This closed-frame structure ensures even downward pressure throughout the entire stroke, eliminating lateral swaying.
II. Comprehensive Comparison
The following table summarizes the primary differences between these two designs:
| Feature | Single-Column (Cantilever) | Double-Column |

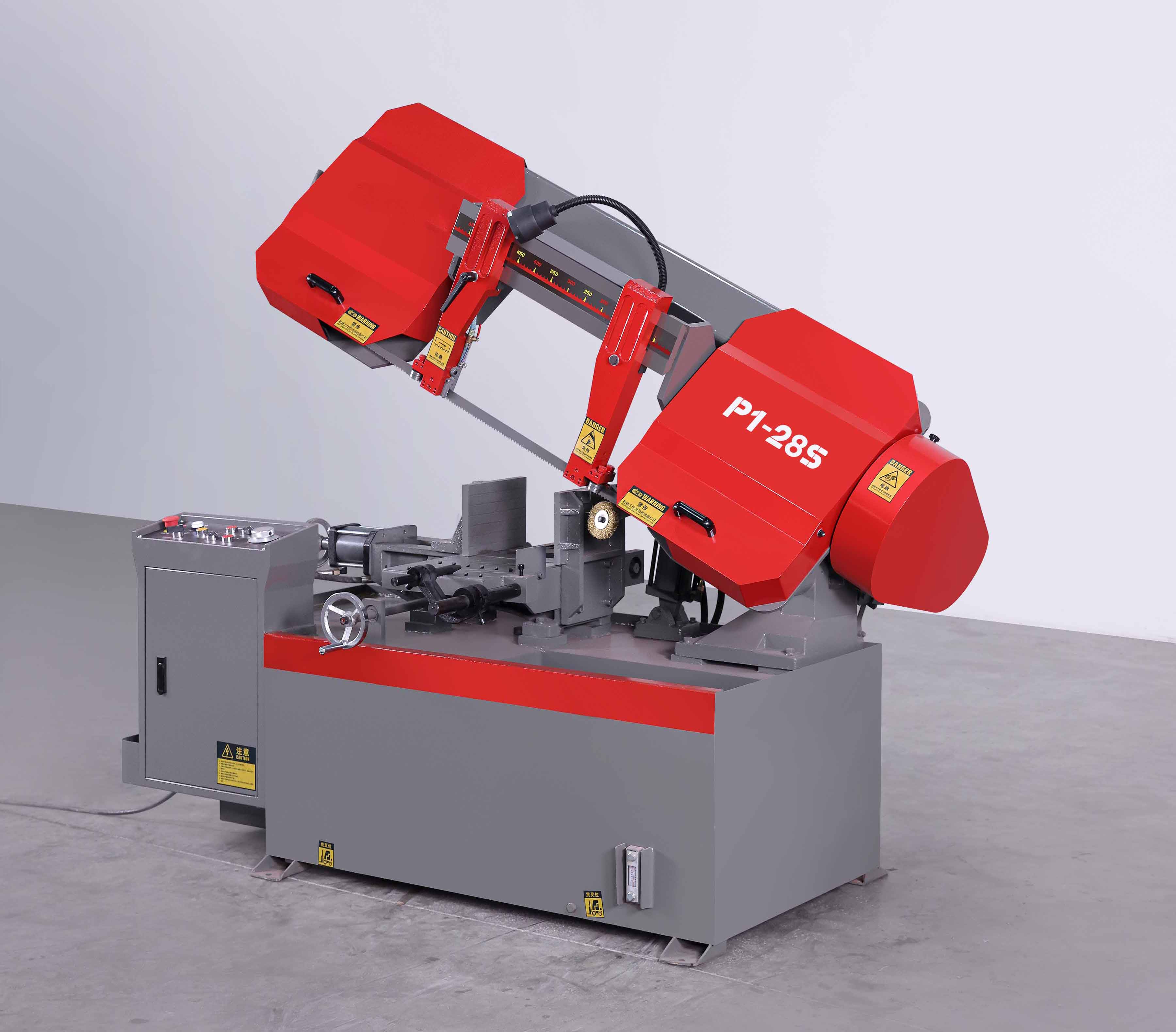

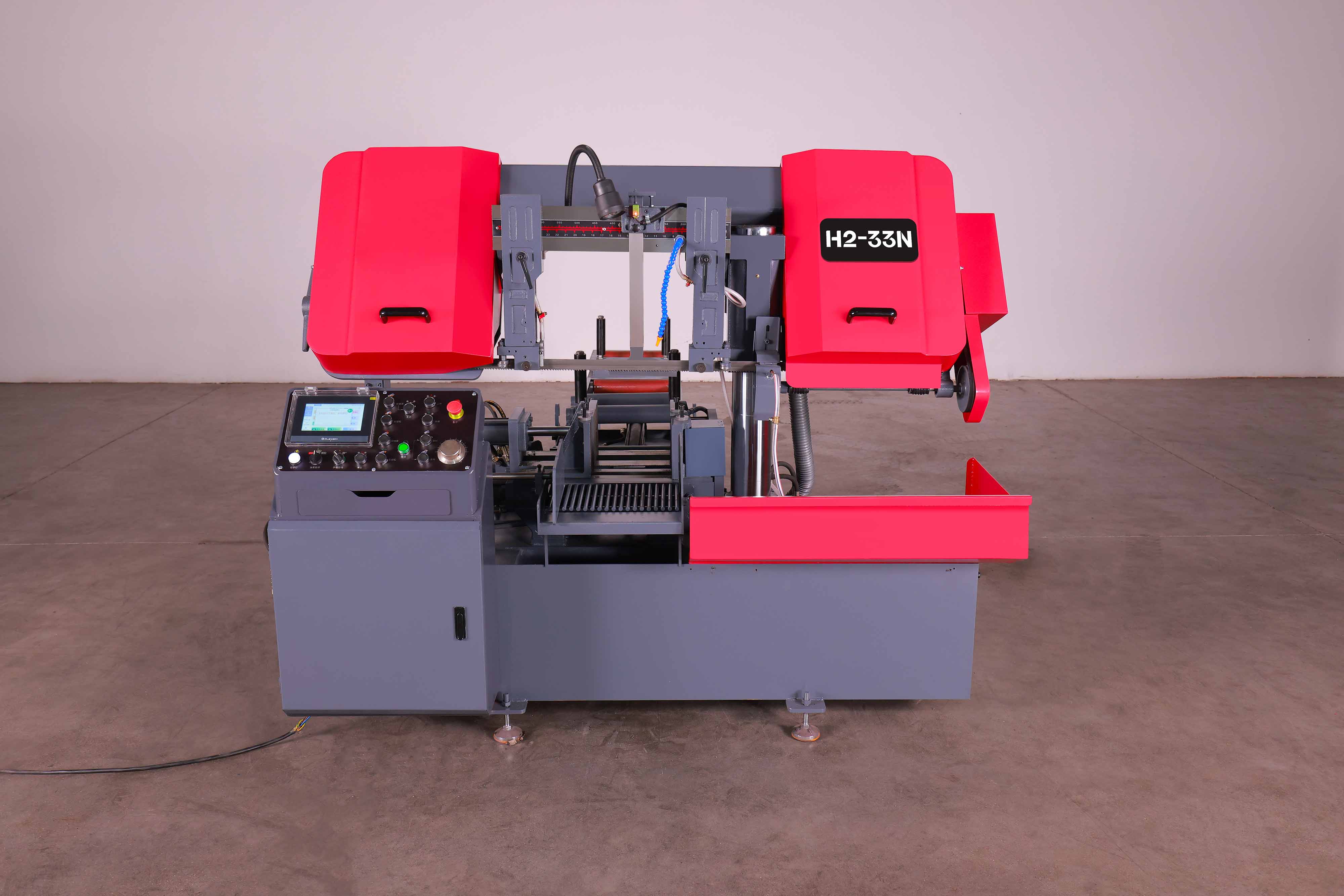

| Pictures |  |
|
| Cutting Path | Arc-shaped (hinged) | Vertical (linear) |
| Stability & Precision | Lower; prone to lateral sway | High; excellent rigidity |
| Straightness Error | ~0.5–1 mm/m | ~0.1–0.2 mm/m |
| Blade Life | Shorter (due to vibration) | 30%–45% longer (stable stress) |
| Ideal Materials | Small-diameter, thin-walled, soft metals | Solid steel, mold steel, hardened, large stock |
| Production Capacity | Low; intermittent use | High; continuous mass production |
| Footprint/Cost | Compact; lower purchase price | Larger; higher investment |
III. Which One Should You Choose?
Choose a Single-Column Band Saw if:
l You operate a small hardware workshop or repair shop with intermittent cutting needs (<100 pieces/day).
l Your materials are primarily small-diameter round steel, aluminum/copper, or thin-walled profiles (≤φ150mm).
l Precision requirements are flexible, and minor angular deviations are acceptable.
l You have limited floor space and are prioritizing a lower initial capital expenditure.
Choose a Double-Column Band Saw if:
l You are involved in mold manufacturing, auto parts, or structural steel, requiring continuous batch processing.
l You regularly cut stainless steel, mold steel (e.g., H13, D2), or large-diameter solid stock (>φ150mm).
l Precision is paramount—you need minimal burrs to eliminate the need for secondary processing.
l You want to optimize long-term costs by reducing blade consumption and minimizing downtime.
l You plan to integrate automated feeding systems for high-volume production.
