Quick Summary:
Shaper (Horizontal): Designed for external flat surfaces and long grooves.
Slotter (Vertical Shaper): Designed for internal contours, blind keyways, and square holes.
Gear Shaper: Specialized machine for generating involute gears (especially internal and multi-tier gears).
1. Core Principles Compared

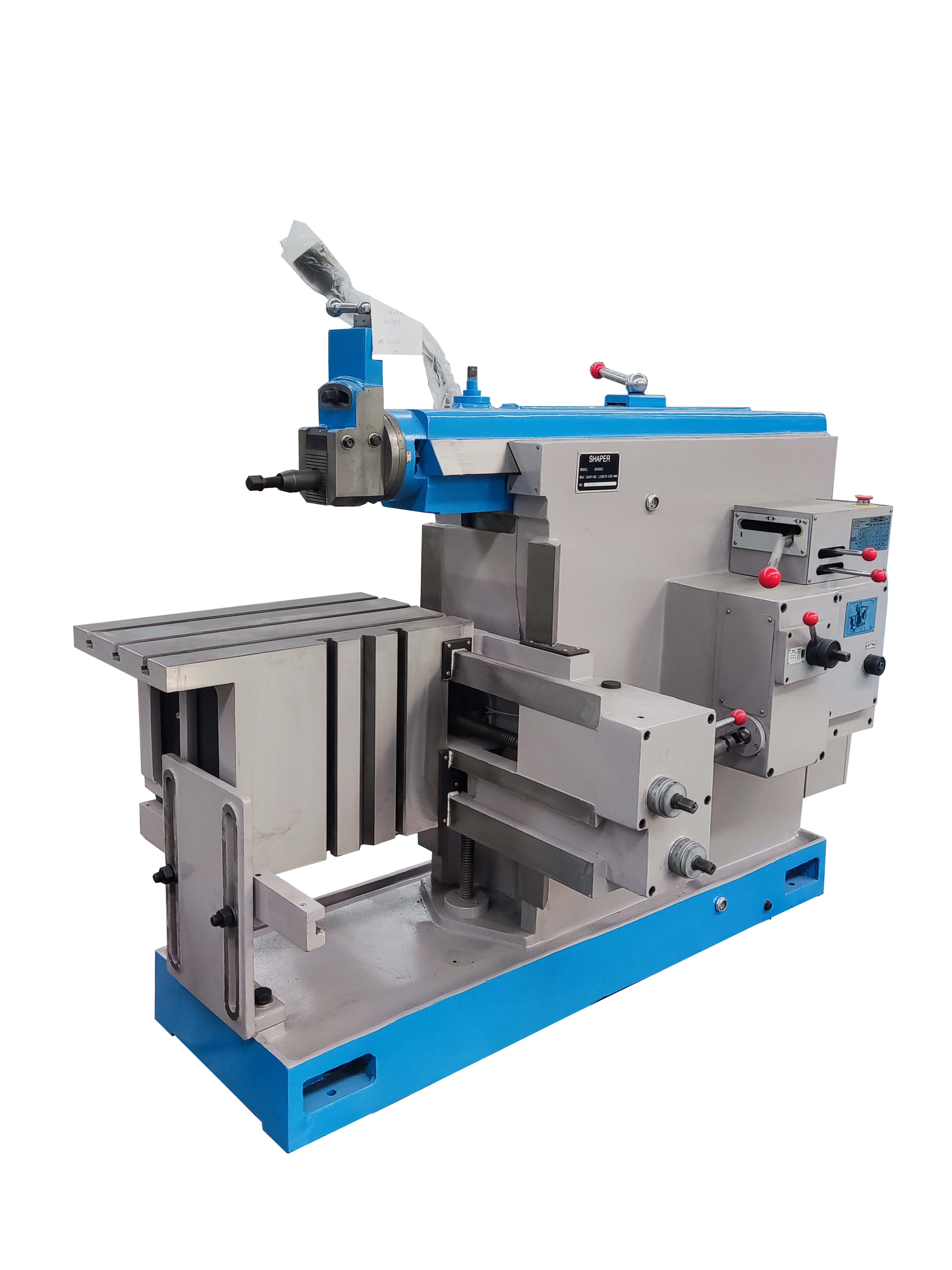

1.1 Shaper (Shaping Machine)
Main Motion: Horizontal reciprocating linear motion of the cutting tool (or horizontal reciprocating table motion in planers).
Cutting Tool: Single-point cutting tool.
Main Applications: External surfaces, including flat surfaces, vertical faces, bevels, T-slots, dovetails, and guide rails.
Accuracy & Use: IT8–IT9, Ra 1.6–6.3 $\mu\text{m}$. Ideal for single-piece or small-batch production and maintenance shops. High cost-effectiveness for long, narrow flat surfaces, but lower efficiency for other shapes.

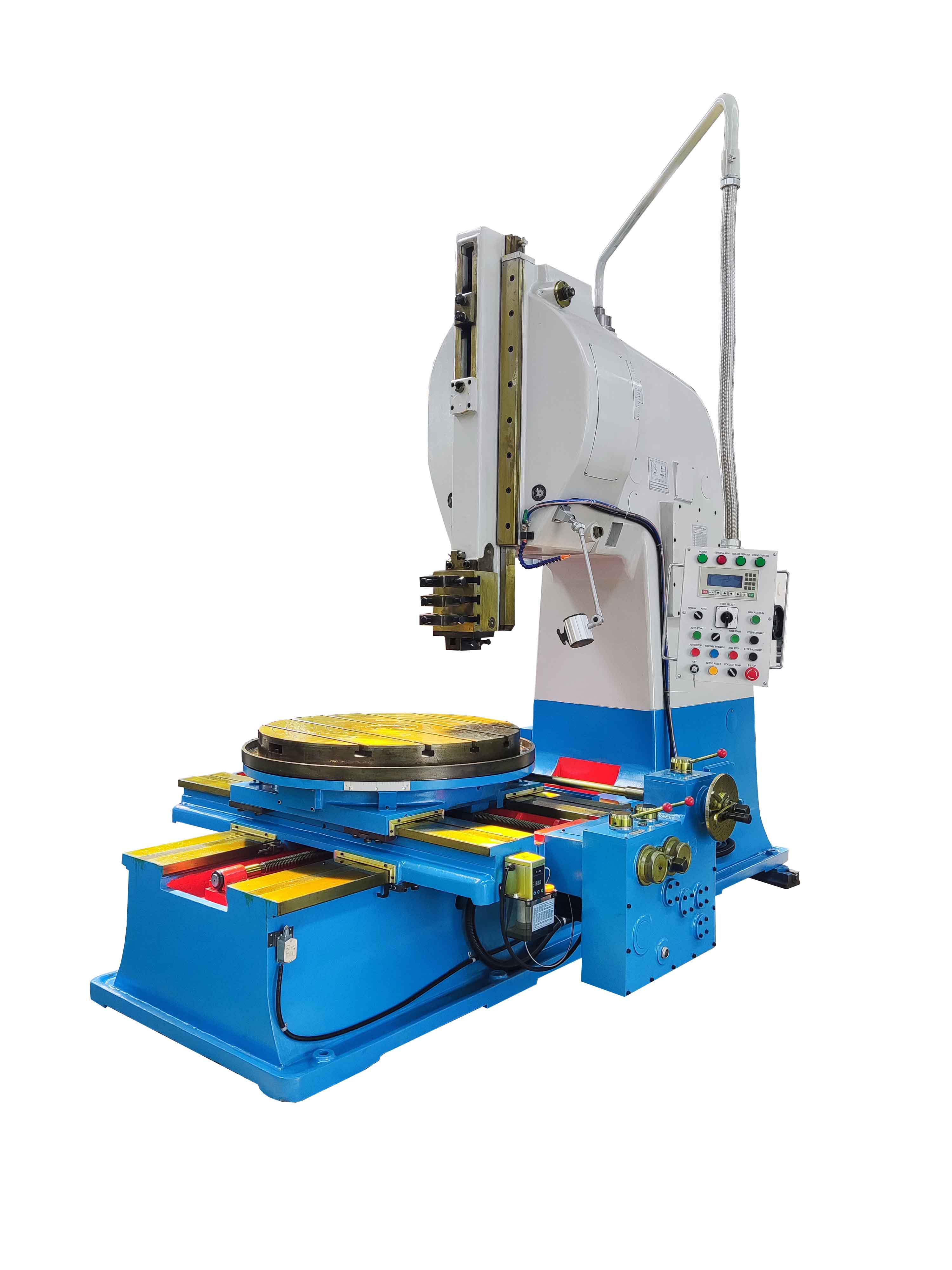

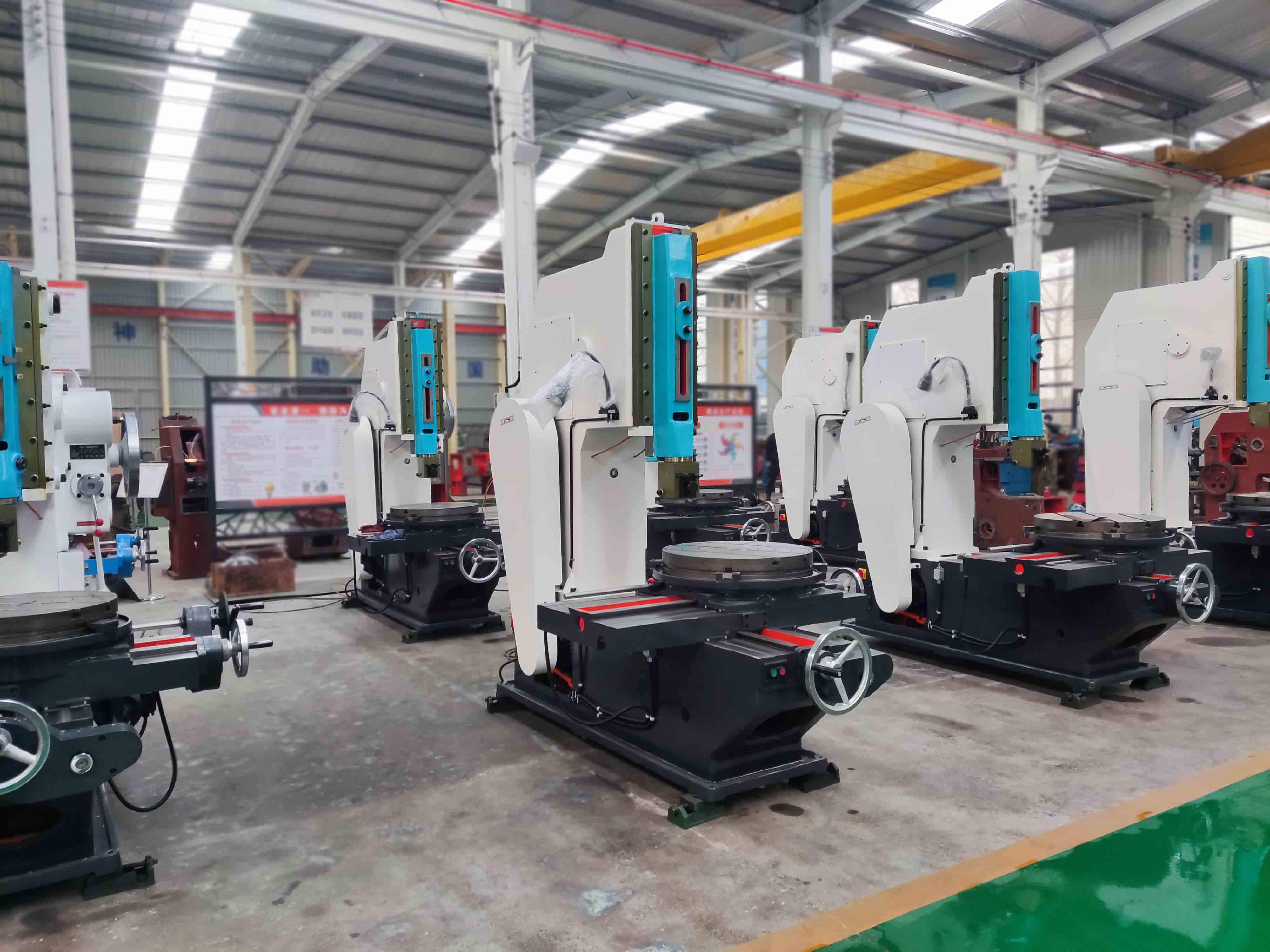

1.2 Slotter (Vertical Shaping Machine)
Main Motion: Vertical up-and-down reciprocating motion of the ram/tool. The table can move longitudinally, transversely, and rotate for indexing.
Cutting Tool: Single-point slotting tool (similar to a shaper tool, but mounted vertically).
Main Applications: Internal profiles, such as blind keyways, spline holes, square holes, multi-sided holes, and internal stepped grooves.
Key Advantage: The go-to choice for blind holes and stepped internal slots where milling cutters or broaches cannot reach.
Accuracy & Use: IT8–IT10, Ra 3.2–6.3 $\mu\text{m}$. Common in maintenance and small-batch workshops (high-volume production typically uses broaching or milling).

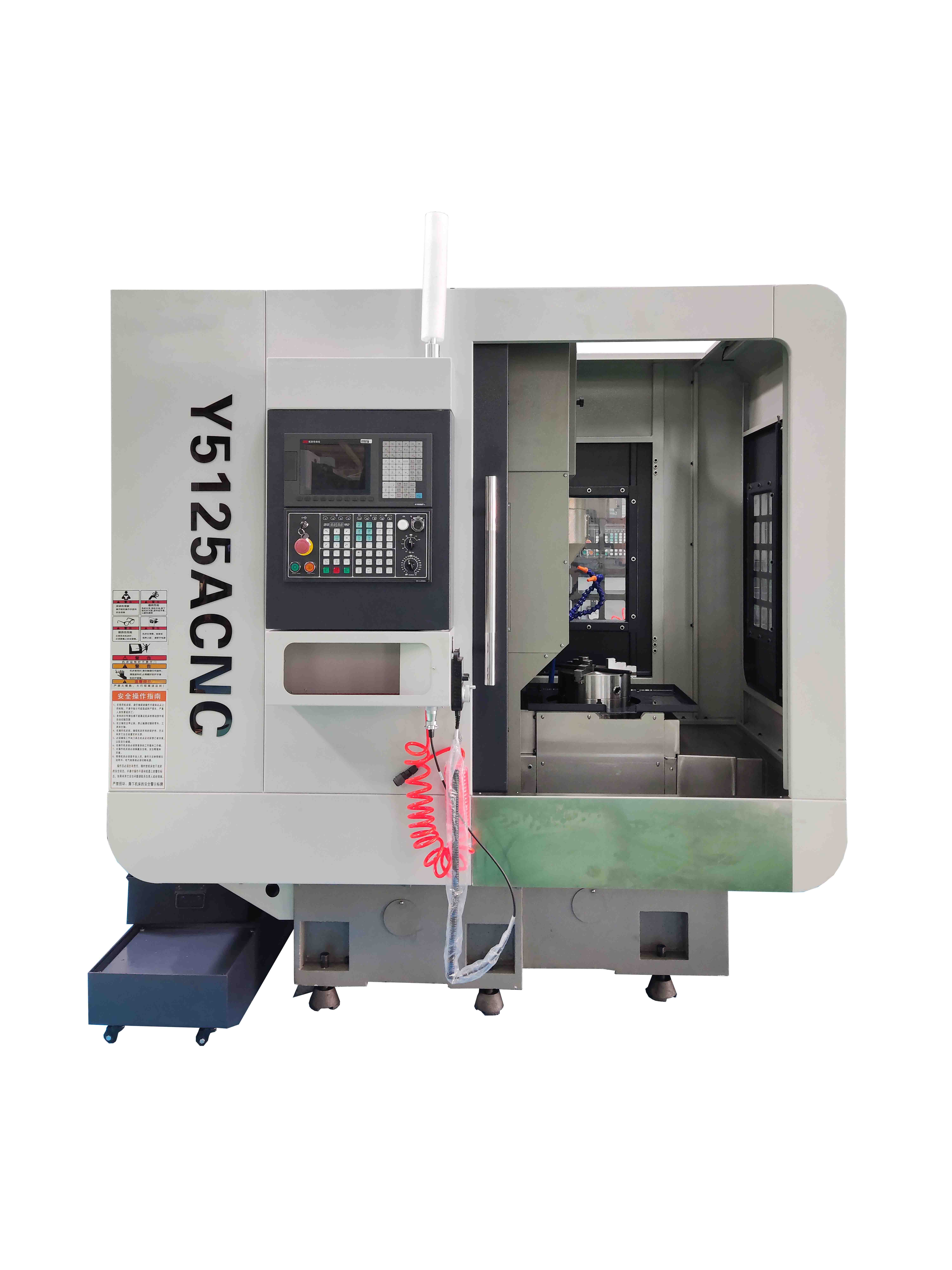

1.3 Gear Shaper
Main Motion: Up-and-down reciprocating cutting motion combined with forced generating rotation (synchronized rotation of the cutter and workpiece to simulate gear meshing).
Cutting Tool: Gear-shaped cutter (module and pressure angle must match the target gear).
Main Applications: Dedicated to involute cylindrical gears, especially internal gears, cluster/multi-tier gears, stepped gears, and herringbone gears.
Accuracy & Use: IT7–IT8, Ra 1.6 $\mu\text{m}$. Excellent tooth profile accuracy for precision gears. Cannot cut regular keyways or square holes (not a general-purpose slotting machine).
2. Quick Comparison Table
| Feature | Shaper | Slotter | Gear Shaper |
|---|---|---|---|
| Pictures |  |
 |
 |
| Main Motion | Horizontal tool reciprocation | Vertical tool reciprocation | Vertical reciprocation + synchronized rotation |
| Tool Type | Single-point shaper tool | Single-point slotter tool | Gear-shaped cutter |
| Primary Use | External planes, long grooves, guide rails | Internal holes, blind keyways, square holes | Internal & external involute gears |
| Cutting Principle | Linear profiling | Linear profiling | Generating method (enveloping tooth profile) |
| Best For | Large external flats, long narrow slots | Blind/stepped internal hole shaping | Internal gears, multi-tier stepped gears |
| Limitations | Difficult to machine internal hole profiles | Cannot cut involute gears efficiently | Limited to gears only; high equipment cost |
3. How to Choose the Right Machine (Part-Driven Selection)
✅ Choose a Shaper if:
Your workpiece features external flat surfaces, bevels, long T-slots, or machine guide rails.
The part size is large, and internal hole slotting is not required.
You are doing single-piece repair work (shapers offer high cost-efficiency for long, narrow external planes). Note: For high-volume flat machining, milling machines are generally preferred.
✅ Choose a Slotter if:
You need to machine blind keyways, stepped internal holes, square holes, or multi-sided internal bores.
There is a step at the bottom of the internal hole where broaches cannot pass through and milling cutters cannot fit.
You handle single-piece, small-batch, or maintenance work involving internal profiles. Note: For high-volume through-hole keyways, broaching machines are preferred.
✅ Choose a Gear Shaper if:
You are manufacturing involute spur or helical gears, especially internal gears, cluster gears, or multi-tier stepped gears.
Your gear profile requires tight IT7–IT8 precision. Note: For standard external gears in high volumes, gear hobbing machines offer higher efficiency.
