Are you struggling to figure out how to choose the right metal band sawing machine for your fabrication shop?
From compact scissor-type saws to massive gantry structures, selecting the wrong equipment can lead to severe production bottlenecks and wasted budget.
This guide breaks down the 5 main types of industrial band saws and their specific applications, helping you maximize cutting efficiency and secure a rapid return on investment.
As one of the most critical metal cutting tools in any industrial facility, a high-quality band sawing machine can drastically improve your overall production efficiency. However, with so many structural designs on the market, buying the right one can be overwhelming.
If you invest in a machine that is too small, you will throttle your output. If you overspend on excessive capacity, you drain your cash flow. Here is the ultimate technical guide to help you match the exact machine type to your daily workload.
1. Understanding the 5 Core Types of Band Sawing Machines
Band saws are generally categorized by their frame structure and automation level. Each design is engineered to solve a specific cutting challenge
2. Quick Reference Table: Which Machine Fits Your Needs?
To help you make a fast and informed decision, use this quick-reference matrix to compare the 5 standard types of metal band saws:
| Machine Type | Photos | Structural Advantage | Best Suited For |
|---|---|---|---|

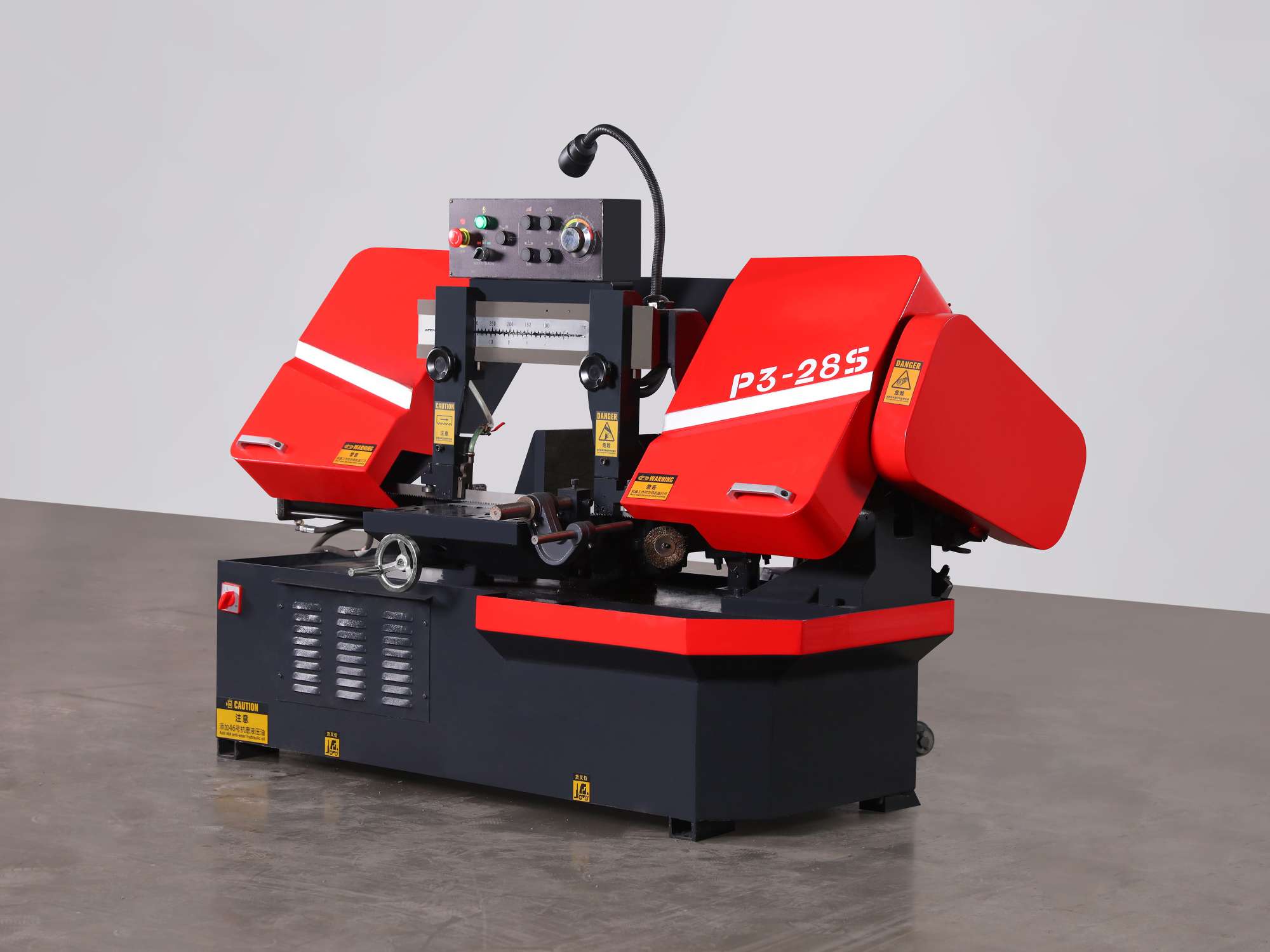

| 1. Scissor-Type Band Saw |  |
The pivot (scissor) structure is highly reliable, simple to operate, and budget-friendly. | Small to medium-sized solid bars, pipes, and plates. Perfect for general workshops. |

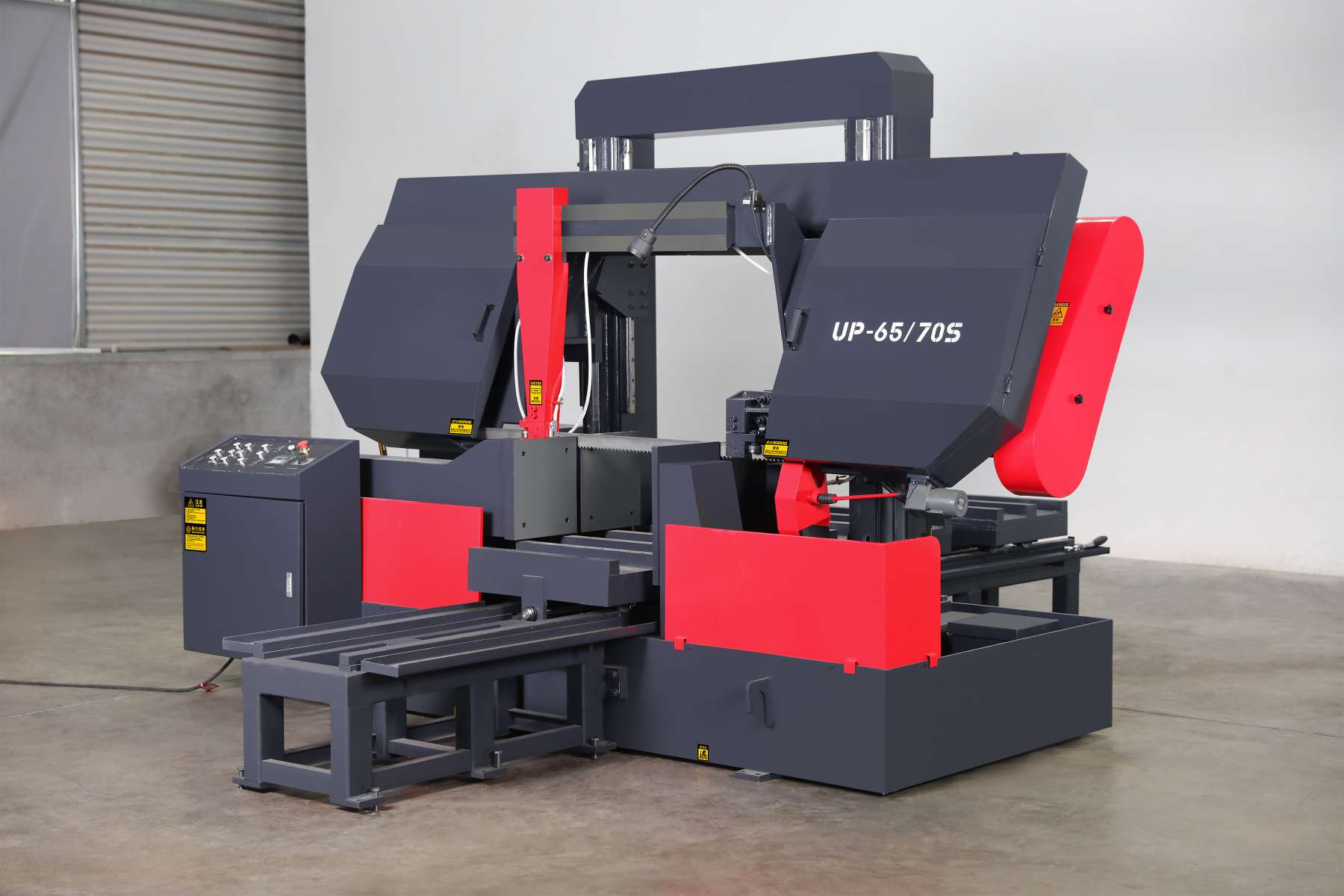

| 2. Semi-Auto Double-Column |  |
Features a highly stable, rigid double-column frame integrated with stroke cylinders. | High-precision straight cutting of large steel, cast iron, and non-ferrous metals in medium batches. |

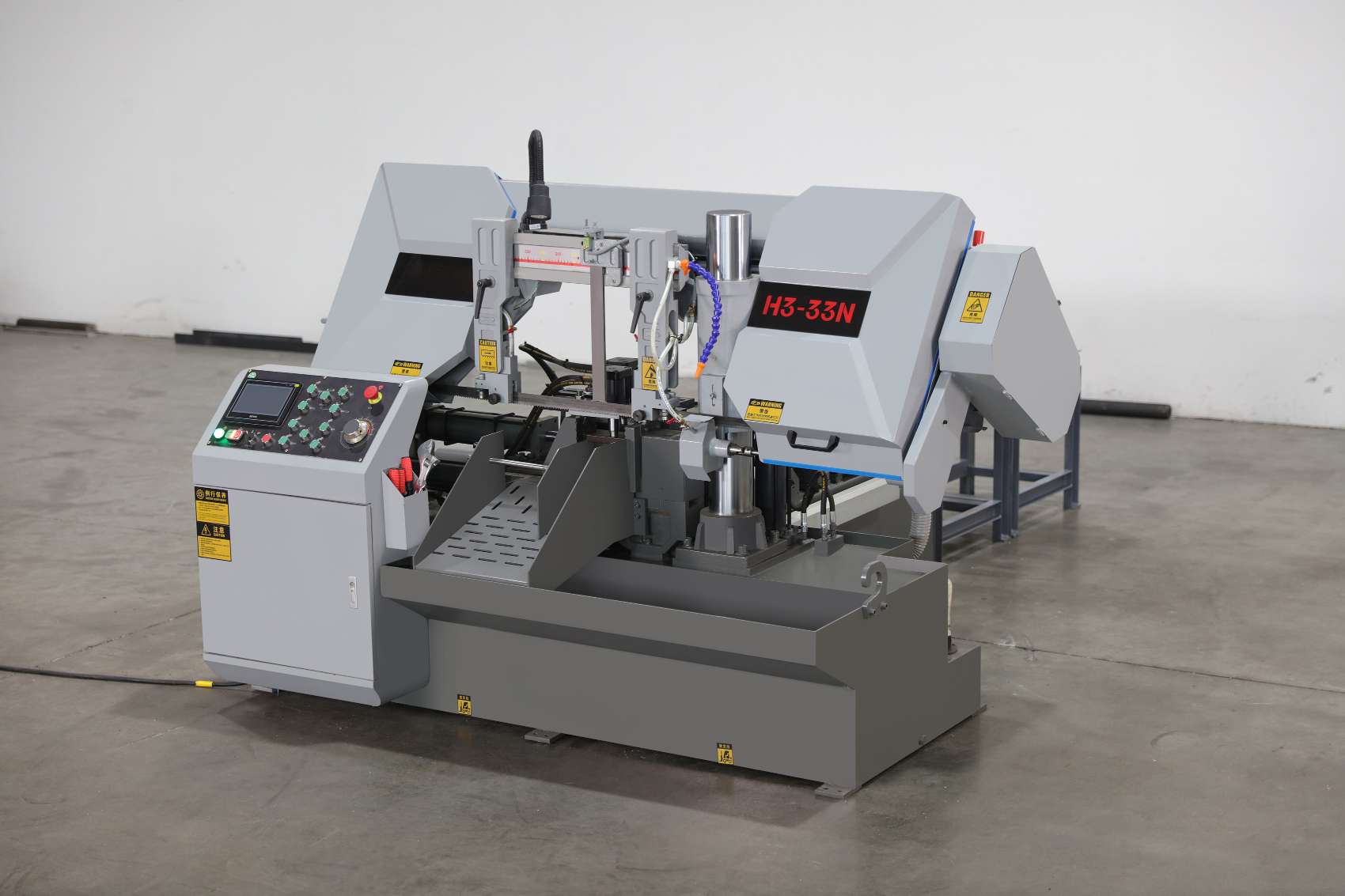

| 3. Fully Automatic CNC Saw |  |
Equipped with a PLC touch screen for stepless speed adjustment and automated hydraulic feeding. | Mass production requiring high repeatability and continuous straight cutting of large workpieces. |

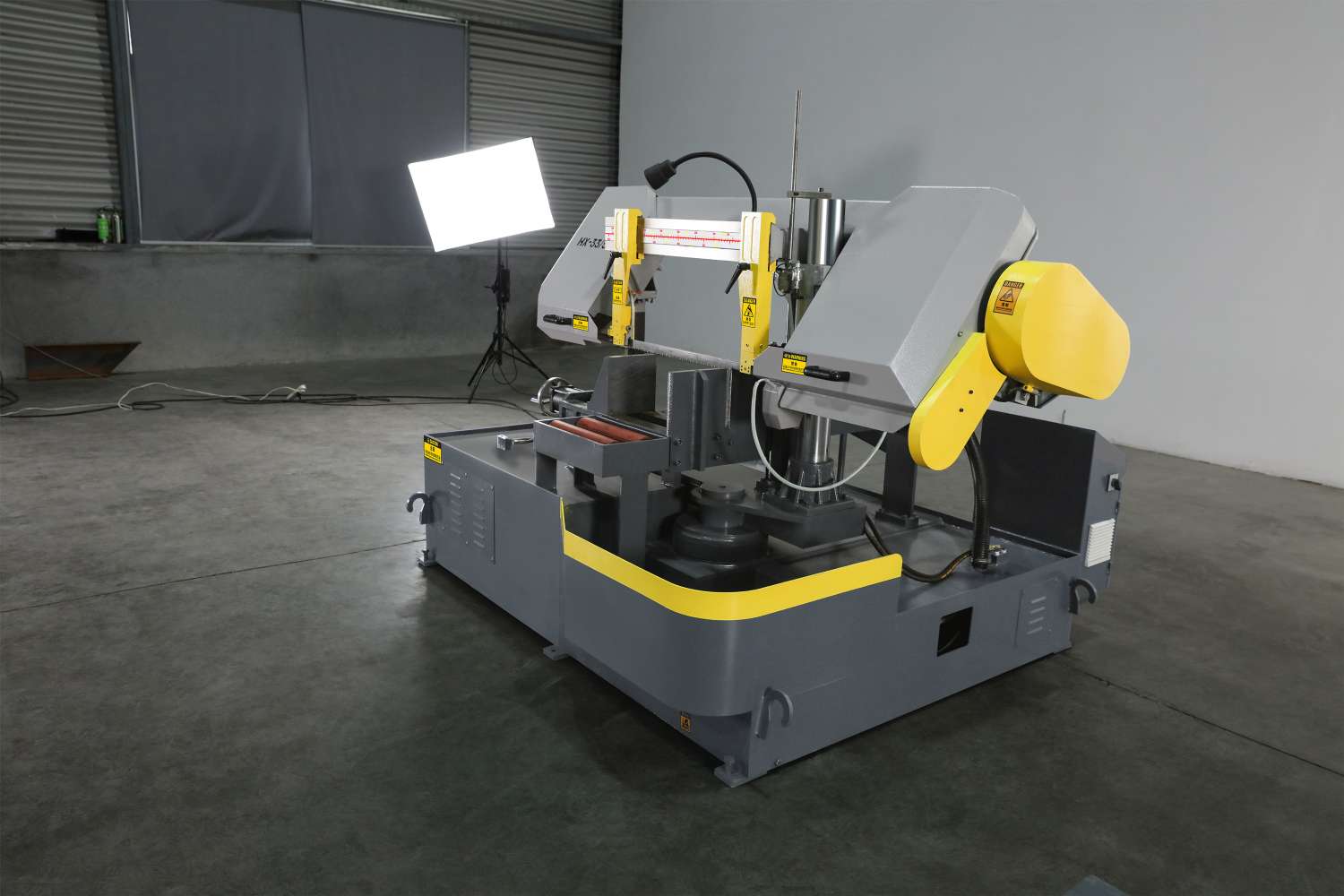

| 4. Rotary Angle (Miter) Saw |  |
A double-column structure designed specifically for angle sawing between 0° and 45°. | Structural steel, H-beams, and channel steel where the sawing surface changes frequently. |

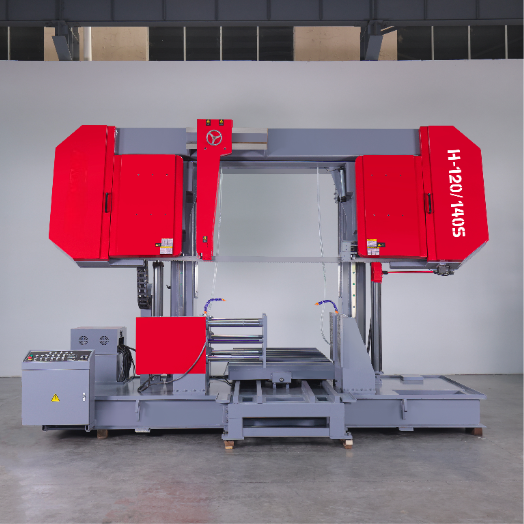

| 5. Gantry Structure Band Saw |  |
The massive gantry frame ensures extreme stability, with sufficient margin for heavy loads. | Medium to extremely large ferrous/non-ferrous blocks and heavy plates. |
3. Match the Automation to Your Order Volume
Choosing the physical structure (Scissor vs. Double-Column) is only the first step. You must also evaluate your labor costs.
If your operators are spending hours manually measuring and feeding materials into a semi-automatic saw, you are losing money on labor. Upgrading to a Fully Automatic Band Sawing Machine allows you to input your required lengths and quantities into the PLC touch screen, freeing up your machinist to perform other profitable tasks while the machine delivers high dimensional accuracy automatically.
4. Angle Cutting for Structural Steel Fabricators
If your shop deals with structural components, a standard straight-cutting saw will severely limit your capabilities. The Horizontal Rotary Angle Band Saw is engineered exactly for this purpose. It allows you to perform precision miter cuts (up to 45 degrees) on H-beams and channel steel without needing to physically rotate the massive, heavy steel beams across your shop floor.
5. Real-World ROI: Protect Your Profit Margins
Let's talk about your bottom line. If you are running a busy fabrication shop anywhere in the world, the goal is simple: achieve high cutting efficiency with narrow cutting joints to save expensive raw materials. For heavy industry applications, investing in the extreme rigidity of a Gantry Structure Band Saw guarantees that your blades won't wander or snap when cutting massive metal blocks, drastically reducing your consumable costs over time.
6. Get the Perfect Band Saw for Your Shop Floor
At MFG Machinery, we provide a comprehensive range of metal band sawing machines designed to meet the exact demands of different metals, sizes, and cutting angles. Whether you need an economical scissor-type saw for a small workshop or a fully automatic gantry system for heavy industrial production, our engineering team is here to help you select the most cost-effective solution.
Stop guessing and start optimizing your production. Please send your specific material sizes and cutting requirements to info@mfg-machinery.com for expert advice and a customized quote!
